5 Channel Automatic Battery Sorter/ Battery Selector for 18650, 26650 or 21700 Cell - MSK-BS-LD
HomeStore

5 Channel Automatic Battery Sorter/ Battery Selector for 18650, 26650 or 21700 Cell - MSK-BS-LD

5 Channel Automatic Battery Sorter/ Battery Selector for 18650, 26650 or 21700 Cell - MSK-BS-LD

Select Battery Type
From $6,999.30

Original: $19,998.00

-65%
5 Channel Automatic Battery Sorter/ Battery Selector for 18650, 26650 or 21700 Cell - MSK-BS-LD—

$19,998.00

$6,999.30

The Story

MSK-BS-LD is a high throughput automatic Battery Sorter/Selector for sorting cylindrical 18650, 26650 and 21700 battery cells by voltage and impedance up to 5 groups.

SPECIFICATIONS:
Feature
  • Must-have equipment for Battery Pack Manufacturer!
  • 5 Channel automatic cell sorter is designed to sort cylindrical 18650, 26650 and 21700 cells
  • Sort by cell's voltage and impedance up to 5 groups
  • Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale)
  • Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale) via ACIR 1khz tester
  • Automatic sorting control
  • Fast sorting speed (3000 batteries/hr)
  • Easy to refill cells during the process
  • Long post-test cell trail
  • 4 wheels design, easy to move the machine to any operating place.
Input Power
  • Voltage: 220 VAC (50Hz/60Hz)
  • Power ≤ 150W
LCD Control Panel Screen
  • 5.7"
Operation Temperature
  • 0-50
Compliance
  • MET, UL or TUV certificate is available at extra cost
Warning
  • Avoid putting objects other than 18650 batteries in pretest battery space
  • Be careful not to pinch fingers in operating conveyor
  • Do not open the machine when it is operating
  • Remove bracelets or any other jewelry before operation
  • Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine.
Operation Manual

Warranty
  • One-year limited warranty with lifetime support
5 Channel Automatic Battery Sorter/ Battery Selector for 18650, 26650 or 21700 Cell - MSK-BS-LD - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

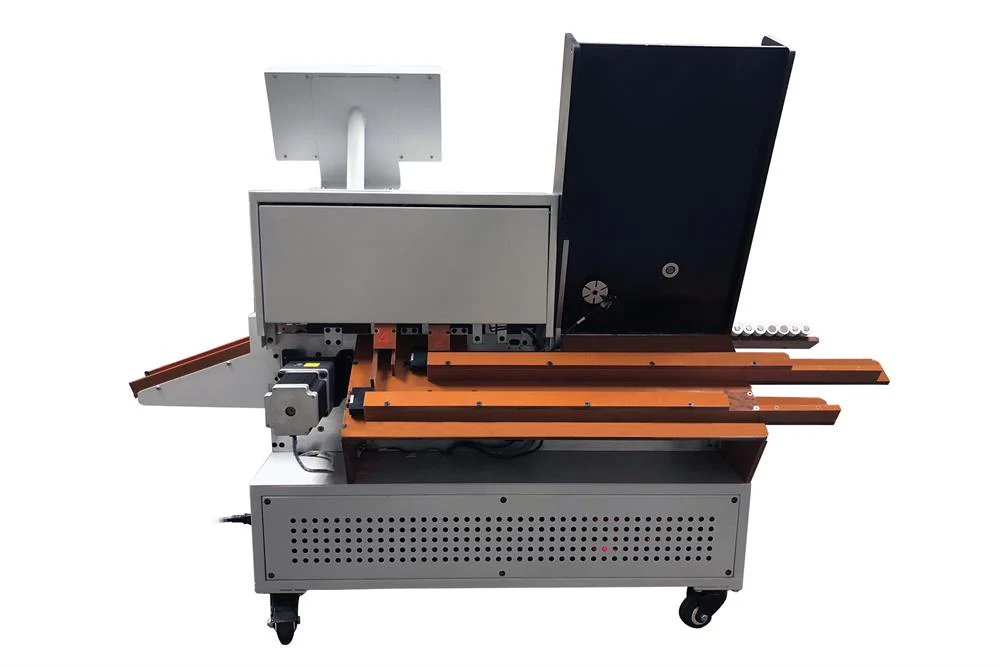

5 Channel Automatic Battery Sorter/ Battery Selector for 18650, 26650 or 21700 Cell - MSK-BS-LD - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSK-BS-LD is a high throughput automatic Battery Sorter/Selector for sorting cylindrical 18650, 26650 and 21700 battery cells by voltage and impedance up to 5 groups.

SPECIFICATIONS:
Feature
  • Must-have equipment for Battery Pack Manufacturer!
  • 5 Channel automatic cell sorter is designed to sort cylindrical 18650, 26650 and 21700 cells
  • Sort by cell's voltage and impedance up to 5 groups
  • Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale)
  • Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale) via ACIR 1khz tester
  • Automatic sorting control
  • Fast sorting speed (3000 batteries/hr)
  • Easy to refill cells during the process
  • Long post-test cell trail
  • 4 wheels design, easy to move the machine to any operating place.
Input Power
  • Voltage: 220 VAC (50Hz/60Hz)
  • Power ≤ 150W
LCD Control Panel Screen
  • 5.7"
Operation Temperature
  • 0-50
Compliance
  • MET, UL or TUV certificate is available at extra cost
Warning
  • Avoid putting objects other than 18650 batteries in pretest battery space
  • Be careful not to pinch fingers in operating conveyor
  • Do not open the machine when it is operating
  • Remove bracelets or any other jewelry before operation
  • Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine.
Operation Manual

Warranty
  • One-year limited warranty with lifetime support
