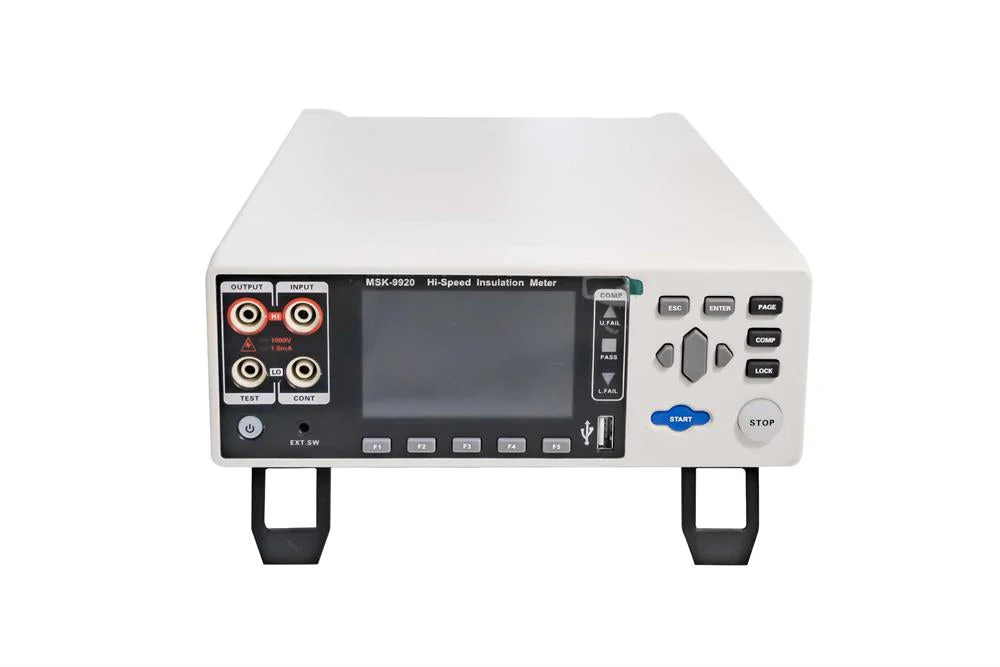

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920

$1,259.30

Original: $3,598.00

-65%
Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920—

$3,598.00

$1,259.30

The Story

MSK-9920 is a high-performance insulation resistance tester used to test the insulation resistance of components and devices. It has contact fault detection and short circuit fault test functions. The fastest test time is up to 50 milliseconds.
Features
  • 3.5-inch high-resolution TFT screen for simple operation
  • Maximum constant current output: 1.8mA
  • Minimum test cycle: 50 milliseconds
  • Able to detect test line or contact abnormalities
  • Effectively detect short circuit conditions
  • Automatically discharge after the test
  • NPN or PNP interface can be configured
Voltage
  • AC 110-230V, 50/60Hz
Power
  • 15W
Testing Voltage
  • DC 10 ~ 1000 V

Testing Range
  • 0 ~ 4000 MΩ (Total 5 scales)

Maximum Output Current
  • 1.8 mA

Maximum Discharge Current
  • 1.2 mA (Constant current discharge)

Trigger
  • IO trigger, manual trigger, bus trigger

Testing Speed
  • High Speed: 50 ms
  • Low Speed: 500 ms

Data Saving
  • 10 sets of data can be recorded

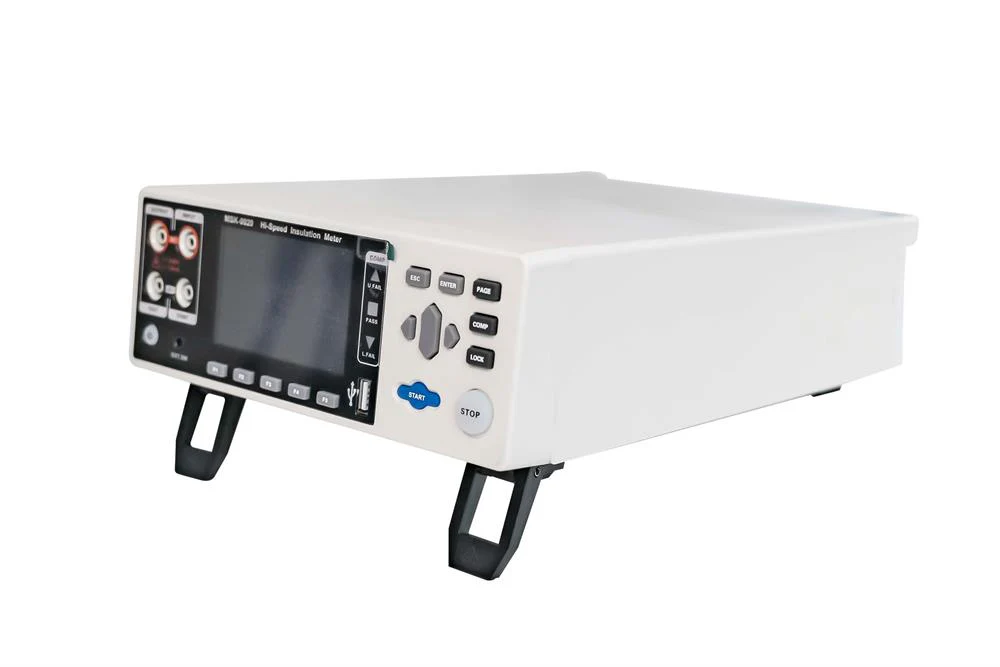

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

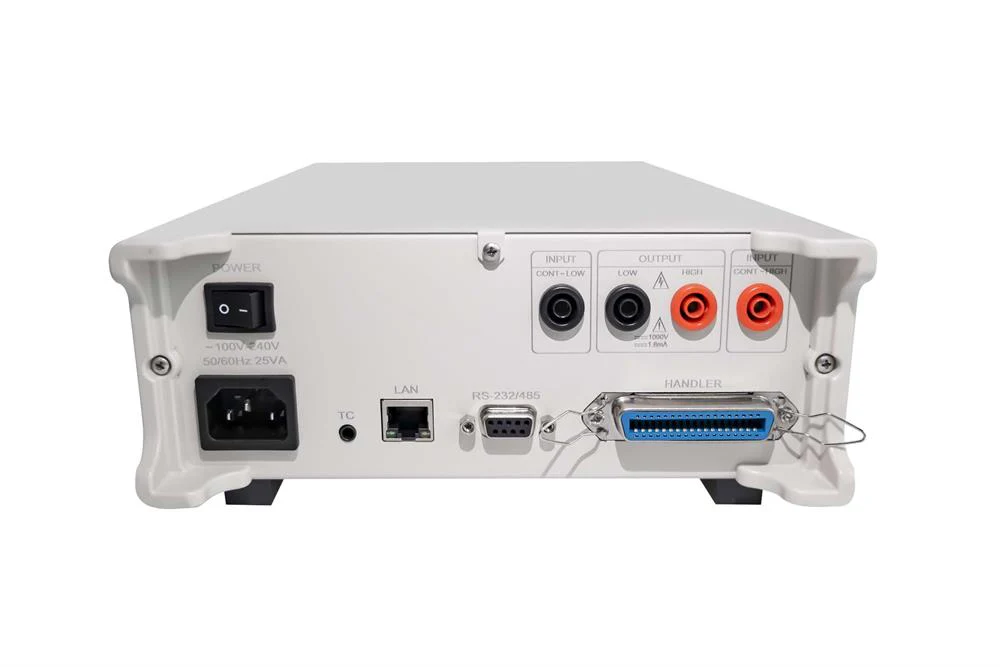

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

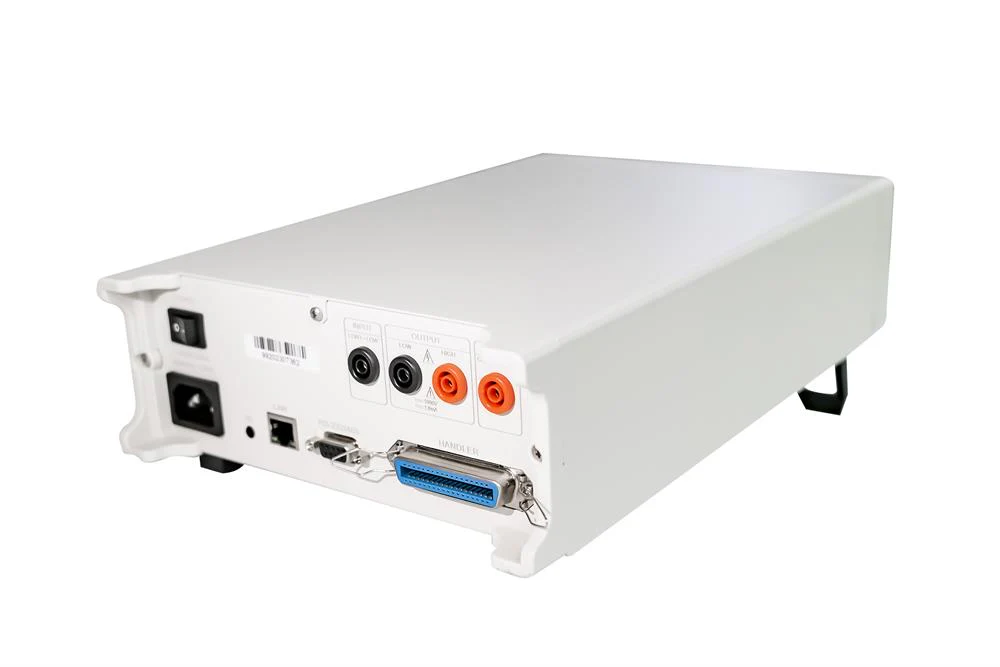

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

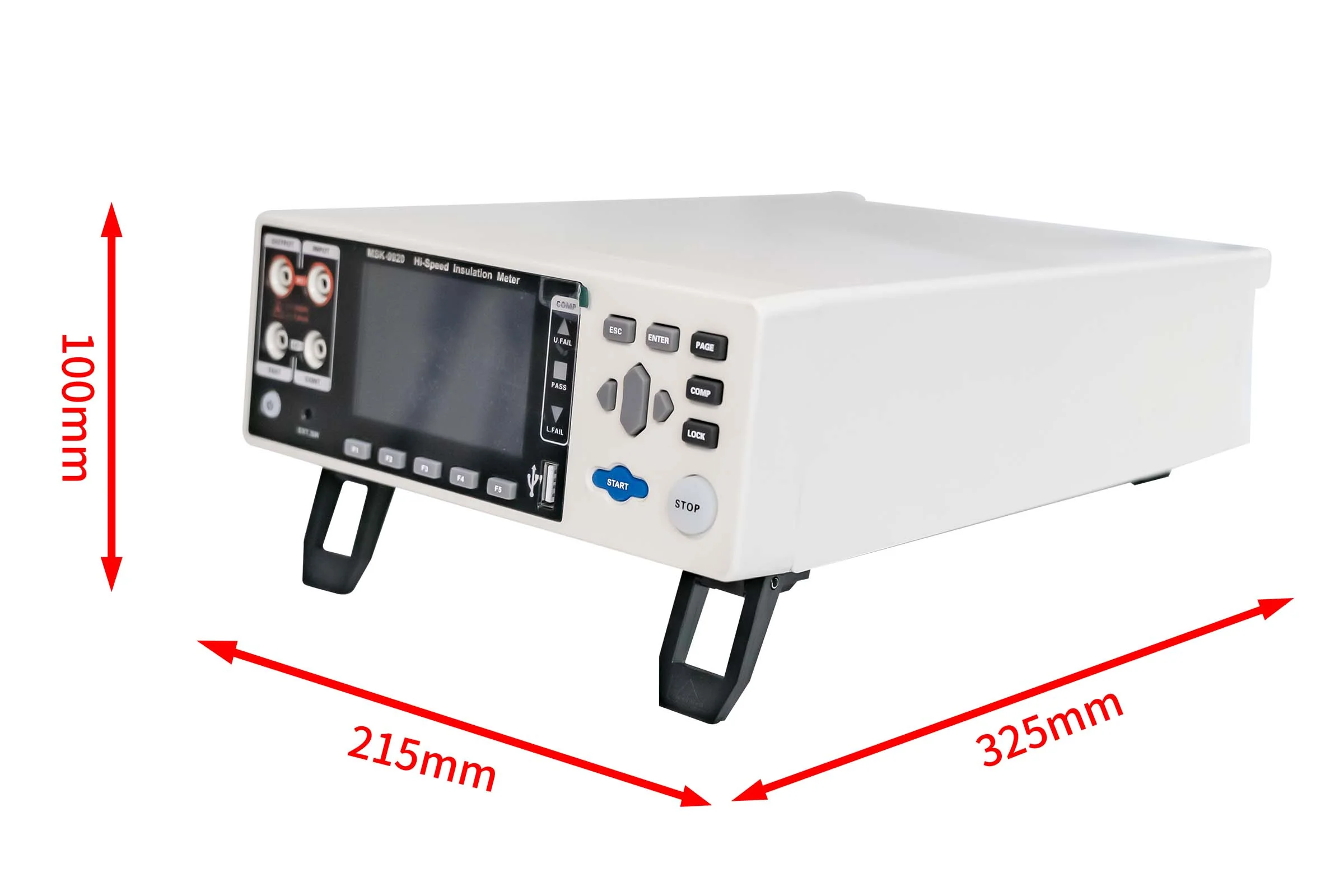

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920 - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSK-9920 is a high-performance insulation resistance tester used to test the insulation resistance of components and devices. It has contact fault detection and short circuit fault test functions. The fastest test time is up to 50 milliseconds.
Features
  • 3.5-inch high-resolution TFT screen for simple operation
  • Maximum constant current output: 1.8mA
  • Minimum test cycle: 50 milliseconds
  • Able to detect test line or contact abnormalities
  • Effectively detect short circuit conditions
  • Automatically discharge after the test
  • NPN or PNP interface can be configured
Voltage
  • AC 110-230V, 50/60Hz
Power
  • 15W
Testing Voltage
  • DC 10 ~ 1000 V

Testing Range
  • 0 ~ 4000 MΩ (Total 5 scales)

Maximum Output Current
  • 1.8 mA

Maximum Discharge Current
  • 1.2 mA (Constant current discharge)

Trigger
  • IO trigger, manual trigger, bus trigger

Testing Speed
  • High Speed: 50 ms
  • Low Speed: 500 ms

Data Saving
  • 10 sets of data can be recorded
