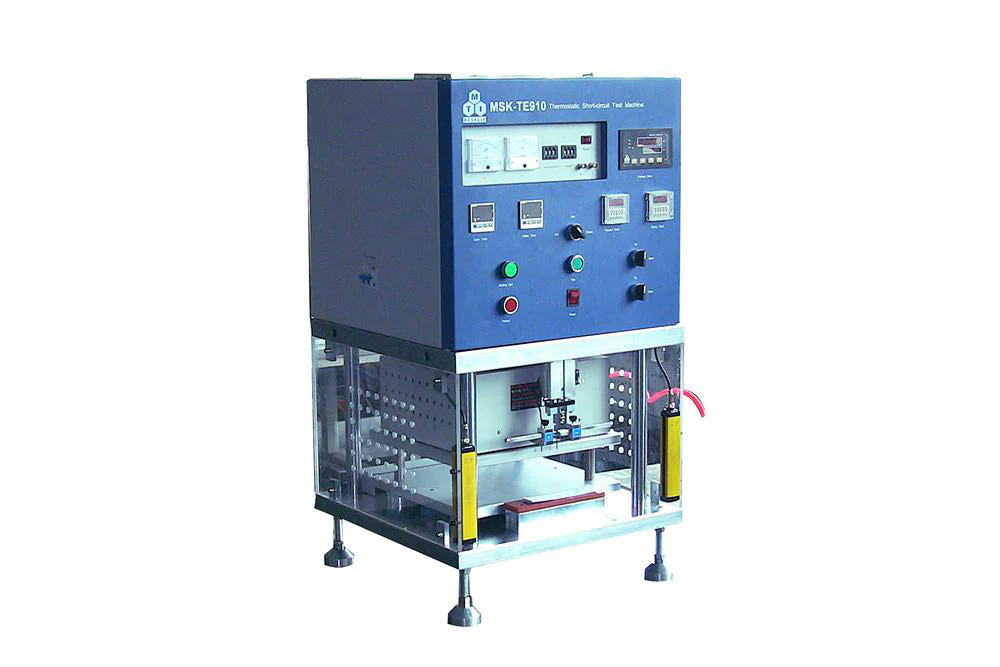

Short Circuit Test System for Pouch Cell Under Variable Pressure 0 - 600kg - MSK-TE910

MSK-TE910 Short Circuit Test System allows for testing pouch cell or its battery pack with adjustable temperature and pressure. Such a system has two test methods which are auto-mode and manual-mode. What's more, this machine tests insulation resistance precisely to recognize the micro circuit status of the battery in order to test the safety issue of the battery.


Features	Adjustable temperature control Adjustable pressure control
Working Voltage	AC220V±10% 50/60Hz
Working Pressure	0~900Kg ±3Kg
Working Distance	0-80mm
Working Temperature	Upper and Lower Platen:130ºC±5ºC Max.
Pouch Battery Size	300 x 300 x 70mm Max.
Short Circuit	Auto alarm
Testing Input Voltage	DC 0~500V adjustable
Max. Measurable Leakage Current	50 uA
Resistivity Measurement Range	Max. 199MΩ
Testing Period	0~99 Seconds adjustable (2~3 seconds is suggested)
Air Pressure	0.1Mpa~0.7Mpa is suggested. Air Compressoris not included. please click here to order or order from your local hardware store. Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.  pic1  pic2
Yields	<600pcs/hour
Application Notes	Please Click Here for Details on UN38.3 Li-Ion Battery Testing Requirements IEC 62113 Safety Test Standard Details Other equipment for testing of IEC 62113 or UN38.3 Standards can be found at MTI online web.
