  • STX-2401 is a precision diamond wire saw to dice materials, such as crystal boule, geographic sample, and interstellar meteor, up to Ø24" (600 mm). A reciprocal moving diamond wire travels vertically and cuts through the stationary sample with a digital control. The sample holder has two degrees of freedom, Y axis for cutting spacing and the azimuth for sample alignment.

SPECIFICATION

Power Supply
  • 208-240 VAC, 1Ø, 50/60 Hz, 20A
  • 3 kVA
Cutting Speed
(Feed Speed)
  • 0.05 - 30 mm/min
Back Speed
  • 1~150mm/min adjustable
Wire Moving Speed
  • 0 - 8  m/s
Control Panel
  • 7" LCD touchscreen with a PLC for cutting parameter programming
  • Cutting speed
  • Back speed
  • Slicing thickness
  • Cutting depth
  • Wire moving speed
  • Cutting cycles
  • Operation of the circulating pump for cutting fluids.
Sample Stage



  • Motorised sample stage with Y-axis and azimuthal adjustment.
  • Size 700 × 700 mm
  • Load Capacity <600KG

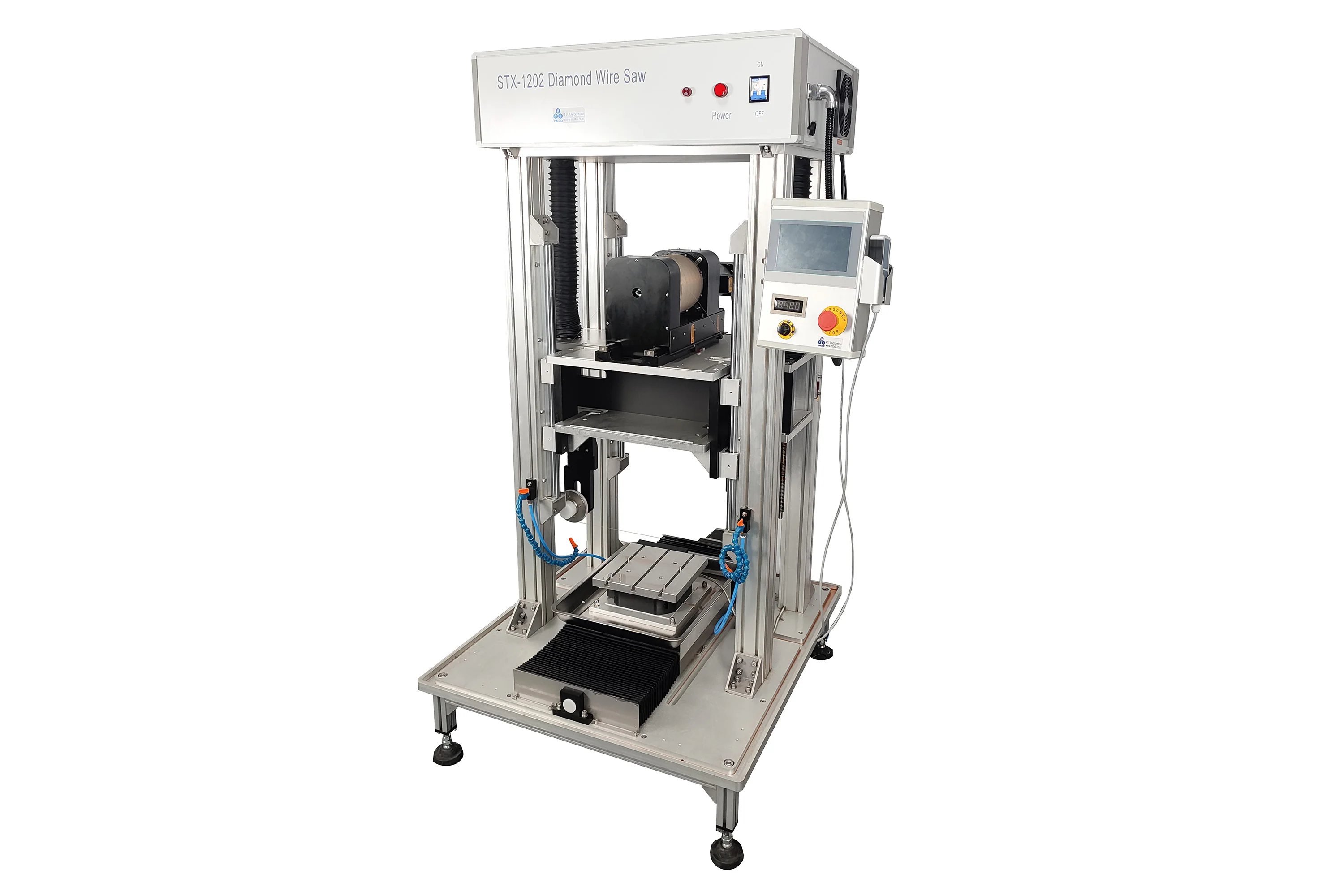

        wire saw STX-1202     wire saw STX-1202
Diamond wire
  • < Ø 0.42mm x  270m Length
Travel Distance
  • Y axis ≤660mm with an accuracy of 0.01 mm
  • Z axis ≤680mm
  • Azimuthal 0-360°
Cutting Area
  • Ø600mm × 650mm
Wire Tension
  • Built-in pneumatic valves to apply a consistent tension for the cutting wire.
  • Compressed air pressure 20 - 60 psig.
Cooling
  • Circulating cutting fluids with two water pumps (included)
Meteorite Sample
  • Please click the picture below to view the meteorite samples that were cut by our wire saws.

Compliance
  • CE Certified.
  • NRTL certification is available upon request.
Warnings
  • It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use oil-based coolant or lube cool lubricant with the water. Do not use tap water directly, rusted component is not part of the warranty.
  • Never cut any materials without the use of proper cutting fluid. If you do so, serious damage can be caused to the spooler driving mechanism.
  • For cutting sticky materials such as non-ferrous alloy, epoxy, and plastic, you must sharpen diamond wire frequently. We suggest cutting the sample along with the included dressing stone (Glue sample and the dressing stone side by side, and cut them together). This process will help keep the wire sharp enough for efficient cutting.
  • Please clean the machine after each use.



STANDARD PACKAGE

Item No.  Description  Image
1 screw-drivers 1set
2 Tension wheel 4pcs (2 has been installed on the machine)
3 power cable 1pcs
4 spool handle 1pcs
5 hex-angle screw 4pcs
6 Guiding wheel 4pcs (2 have been installed on the machine)
7 spanner for wire-installer 1pcs
8 triangle block 1pcs
9 water splash guard plate 2pcs
10 water splash guard cover for spooler 1pcs
11 270 m diamond cutting wire (0.42mm) 2 pcs (1 on the machine)
12 Auxiliary wire winding jig 1pcs
13 Recirculating liquid pump 2pcs
14 Diamond Blade Dressing Stone
