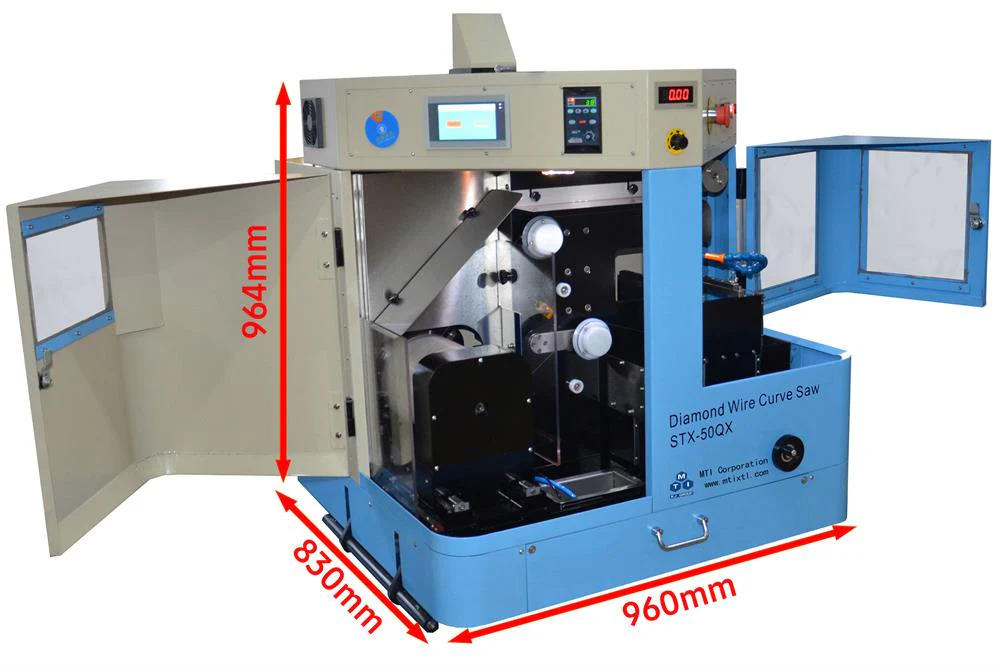

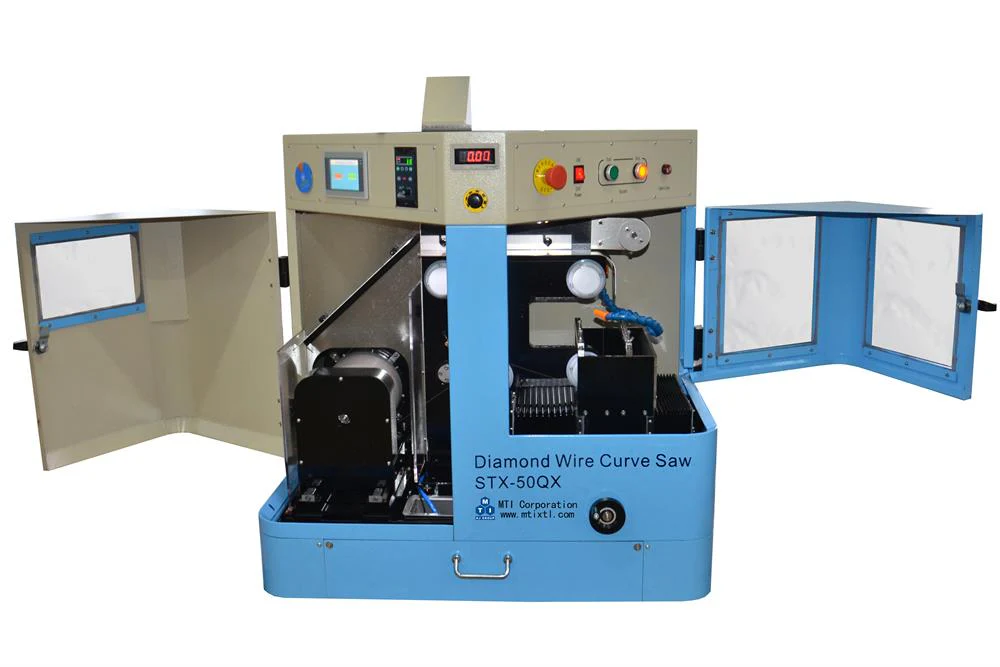

Diamond Wire Curve Cutting Machine for Cutting 150x100x50 (mm) Sample with PC Control - STX-50QX

STX-50QX is a diamond wire curve cutting machine, which is designed for cutting irregular-shaped samples of non-conductive materials, such as ceramics and polymer composites. The machine is controlled by the included PC and software. As long as inputting a 2D drawing, it will cut the sample automatically with Max.  sample size of 100 x150 x 50  (mm)

SPECIFICATIONS:

Power	AC220V+/- 10%, 50/60Hz 500W AC110V version is available via a 1000W transformer
Cutting Parameters	X-axis slide travel: 0 - 100mm Y-axis slide travel: 0 - 150mm Max. cutting depth: 50 mm Travel resolution: 0.01mm X / Y axis travel speed: 0.06-6mm/min Diamond wire moving speed: 15m/s max. Sample holding platform: 140mm x 275mm Max. ample size to cut: 100mm x 150mm x 50mm
Control PC and Software	Dedicated with pre-installed software The engineering drawing of the sample can be made via the software on the PC Cutting parameters can be set up in the PC, and a push button to operate automatically
The materials for cutting	The machine can cut almost every type of material as long as its hardness is less than diamond Especially good at cutting non-conductive material, which EDM can not be cut It can also cut metallic material at low speed than EDM Can cut any curve and straight line
Compliance	CE certified NRTL or CSA certification is available upon request at an extra cost
Application Note	Different materials require different cutting parameters It is the customer's responsibility to find the best cutting parameter. Diamond wire is consumable. Usually, service life is less than 30 hours at 1- 2 mm/minute cutting speed. Please prepare enough spare diamond wires Online training is available upon request at a reasonable cost
