The Story

VTF-1200X-TSSG is a top seed solution growth (TSSG) furnace for growing various single crystals via flux solution. The furnace consists of high-quality alumina fiber brick with a chamber of 9.5" Diameter x 8.6 " high and can be used up to 1200ºC. The Precision digital temperature controller with 30 segments programmable is built in the furnace with +/- 0.1ºC accuracy, as well as precision, pulling, and rotation mechanism with a speed range from 0.1 - 50 mm/hour.

  • Please click to view the article of Flux Method for Preparing Crystals
Furnace construction
  • Double shell steel casing with a cooling fan to keep a low surface temperature
  • High-purity alumina fiber insulation and liner for max. energy saving
  • Inside Chamber Size of furnace
  • 9.5" Diameter x 8.6 " high (9 Liter)
  • The furnace is slidable on the frame for easy sample loading and unloading
  • Quartz window is available upon request

Working Temperature
  • Max. Working Temperature: 1250ºC (< 30 minute)
  • Standard Working Temperature: 1150ºC (continuous)

Control Panel
  • PLC touch screen control panel for controlling temperature, pulling speed, rapid downward speed and rotation speed of pulling rod
  • Temp. Controller: 8 steps programmable and auto PID control with +/- 0.1ºC accuracy (Eurotherm 3000 inside)
  • Heating Rate 0~10ºC / min (suggestion at =< 5ºC)
  • Pulling Speed: 0.5-50mm/h adjustable
  • Downward speed: 50 mm/minute fixed
  • The rotation speed of the pulling rod: 0.1-23 RPM adjustable

Pulling Range
  • 250 mm Max.

Power
  • AC 220V Single Phase
  • 4.0 KW

Power Cable & Plug
  • 10 feet long 10-3 AWG heavy-duty UL-approved power cable is included. Extra length cable can be ordered by clicking the picture below
  • The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.

Furnace Dimension
Please click the picture to review

Warranty
  • One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacement in the related products below.)

Compliance
  • CE Certified
  • NRTL(UL61010) or CSA certification is available upon request at extra cost.



1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

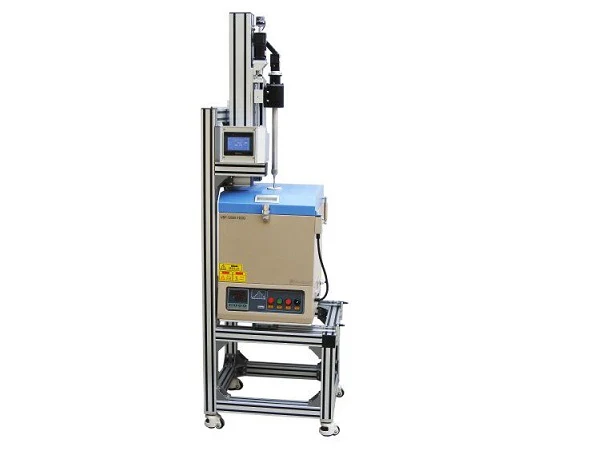

1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

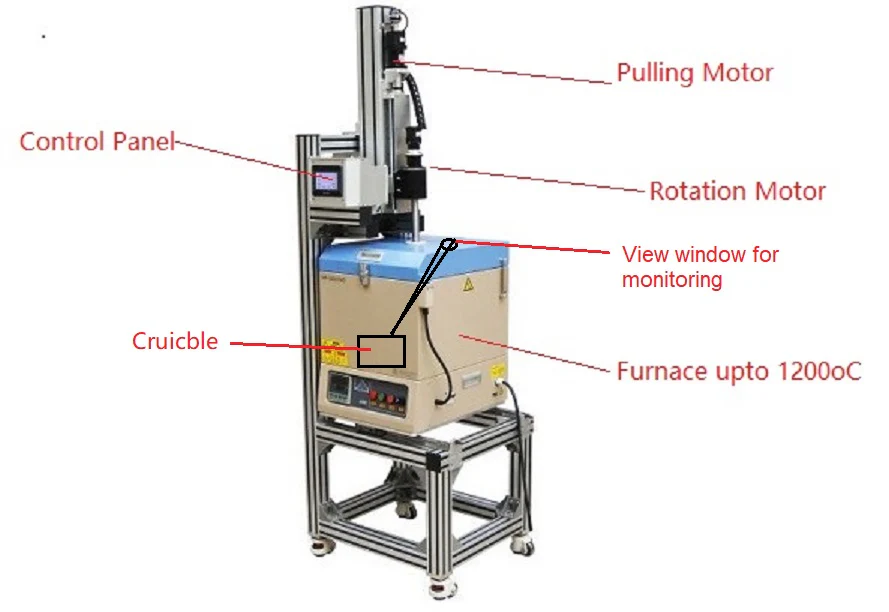

1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG - Image 4
