The Story

IMCS-2000-CZ is a small-scale Czochralski (CZ) Crystal Growth Furnace for metals and oxides with a diameter < 1". It has been proven excellent for pulling various crystals with up to 2100 oC, including Al2O3, GGG, YAG, LaAlO3, Si, Ge, etc. MTI provides technical training on installing and operating before shipping, also provides online video technical support worldwide.

SPECIFICATIONS:
Power
  • Input: 208VAC or 380VAC, 3 phase, 50A(max induction power), 50/60Hz
  • Output: 25kW(max)
Heating and Temperature
  • Max: 2100°C (3812°F) with induction heating
Vacuum Chamber
  • Material: SS304
  • Size: Φ320×320mm, equipped with a quartz window (Φ120mm) to observe material melting, crystal seeding, and growth.
  • There is one KF25 port and one KF40 vacuum port connected to the back of the chamber. There is also one LF160 port on the right side of the chamber for molecular pump system connecting.
Pulling Mechanism
  • The pulling mechanism is driven by a precision servo motor/n
  • Pulling Speed: 0.1-10 mm/hr
  • Pulling rod rotation speed: 0.1-23 rpm
  • Travel Distance: 0-300mm
  • The pulling mechanism can move as quickly as 35mm/min

Vacuum atmosphere
  • The vacuum chamber can be evacuated and filled with inert gases.
  • Equipped with a digital anti-corrosion vacuum gauge (oiled ceramic coating on the sensor), the measuring range is 10 ^-5 ~ 1000 torr
  • Vacuum level: 5x 10-5 torr (turbopump) or 5 × 10-2 Torr (mechanical pump)
    Vacuum pump ( optional): Please click the picture below to choose a vacuum pump at the extra cost.
  •

Induction Heating
  • 25KW (30-80KHz) induction power supply with Time Controller and Power Controller
  • Induction coil: φ90mm × 80mmH
  • Water cooling: 116L/min circulating water chiller is not included.
  • The crucible and thermal insulation accessories are not included.

Control Panel
  • Touch screen control panel control
    • Induction power
    • pulling speed
    • rotating speed

Application Notes


Melting materials Crystal seeding Start pulling Sapphire boule grown Ni Crystal grown



Small CZ Crystal Grower System for < 1" Single Crystals up to 2100C - IMCS-2000-CZ - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

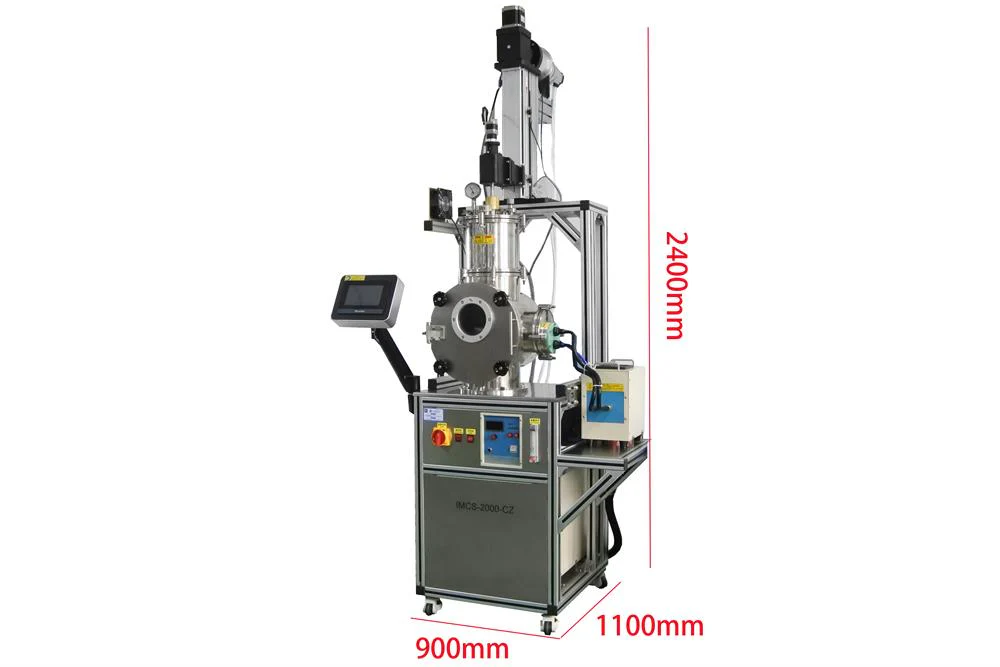

Small CZ Crystal Grower System for < 1" Single Crystals up to 2100C - IMCS-2000-CZ - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

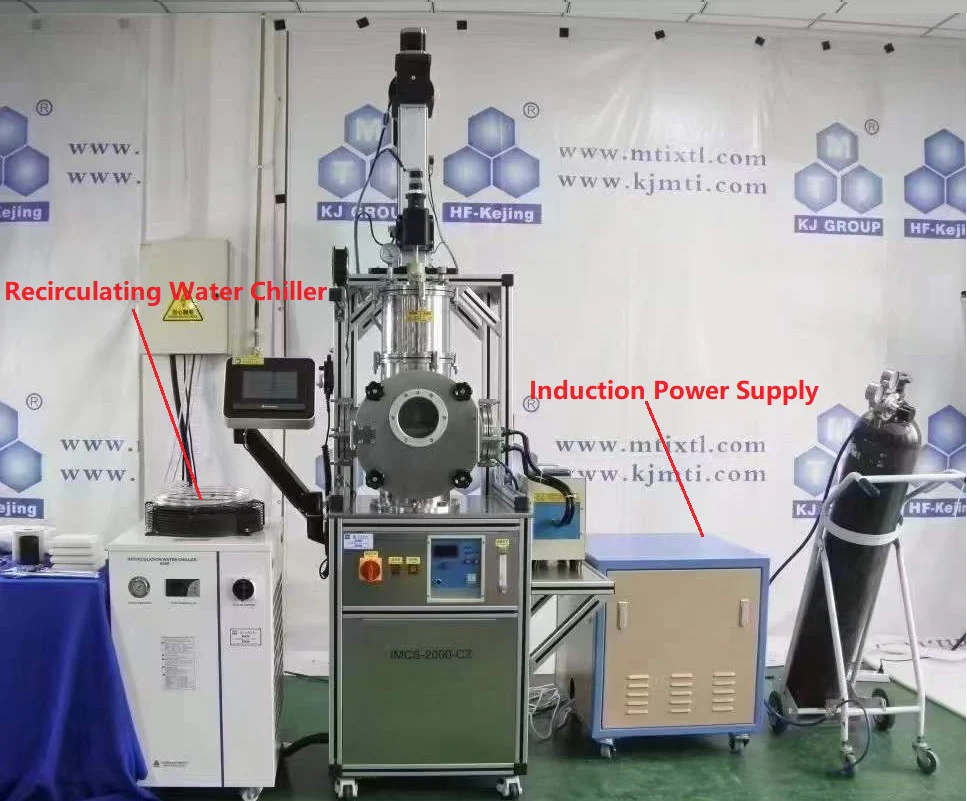

Small CZ Crystal Grower System for < 1" Single Crystals up to 2100C - IMCS-2000-CZ - Image 4
