2KW Laser Welding System for Prismatic Cells (Tab Welding and Top Lid Sealing) and Cylindrical Cells - MSK-LW-S2000

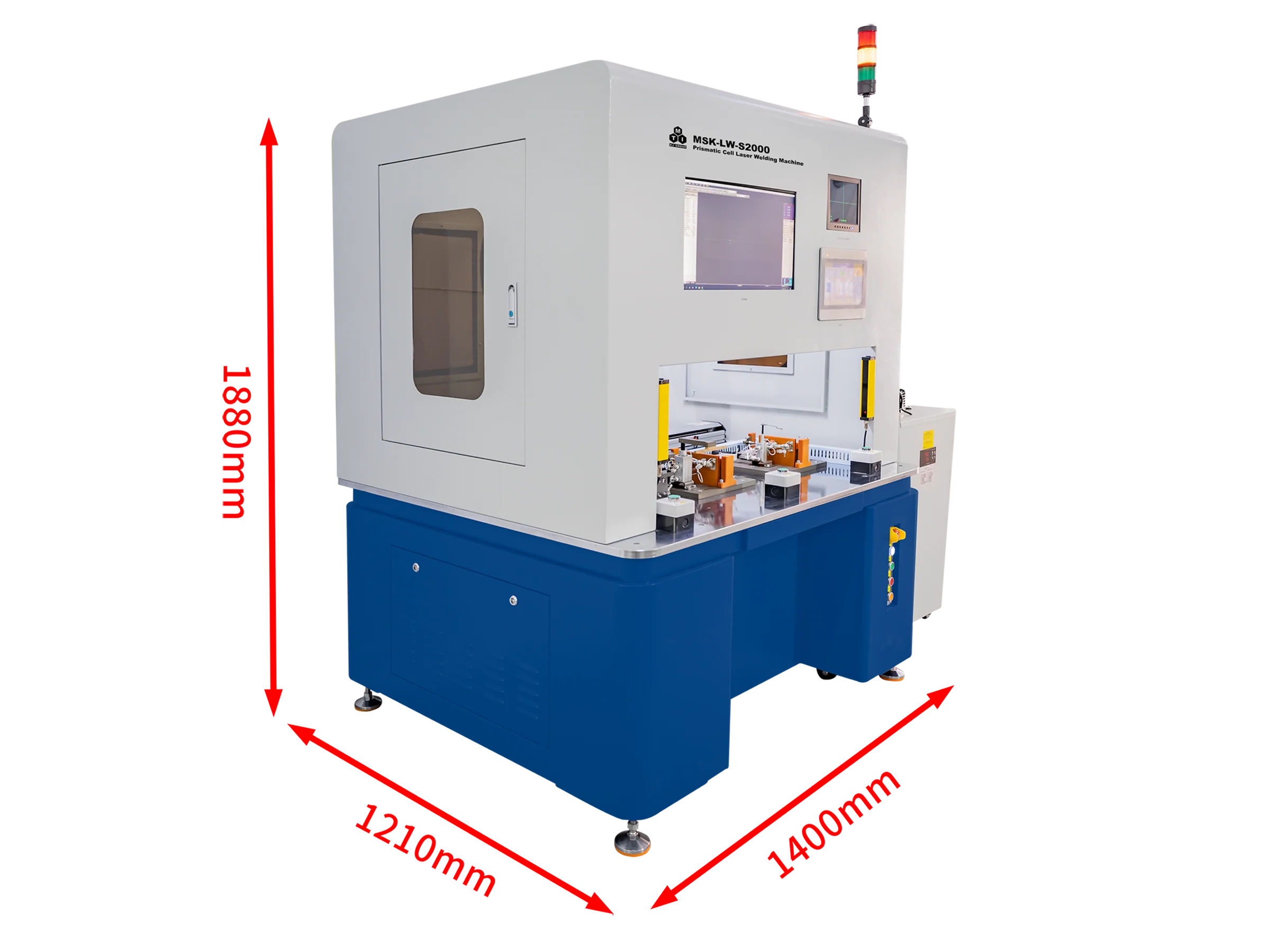

The Laser Welding System MSK-LW-S2000 is designed for the prismatic cell tab welding and top lid sealing.
There are 2 working stages. One is for the prismatic cell current collector welding. The other one is for the prismatic top lid/cap sealing.
The laser welding and sealing is the most critical step in the prismatic cell assembling procedure.

SPECIFICATIONS:

Advanced Features	Laser Type: Fiber laser It is designed for high reflective materials such as aluminum and copper The stable laser output ensure high-quality welding The CCD Positioning. Quick positioning speed X: 500 mm/s, Y: 500 mm/s, Z: 500 mm/s. The XY Stage Control System. Effective traverse distance X: 880 mm, Y: 230 mm, Z: 2400 mm. It is suitable for prismatic cell case sealing with different dimensions and sizes It is available to customize the positioning fixture based on the cell dimension.
Input Voltage	AC 220V +/- 10%, 50Hz, single phase
Power	Maximum Power Consumption: 3500 W
Welding & Sealing Area	Prismatic cell tab welding: 600 mm (L) x 300 mm (W) x 300 mm(H) Prssmatic cell top lid sealing: 600 mm (L) x 300 mm (W) x 300 mm (H) Maximum prismatic cell size: 600 mm (L) x 500 mm (W) x 300 mm (H)
Laser	Fiber laser power: 2,000 Watts Wavelength: 1075 nm +/- 10 nm Beam: M2 < 1.3 Continuous Mode / Manual Mode Power adjustable: 10% - 100% Fiber cable diameter: 50 um Fiber cable output: QBH/QD Fiber cable length: 20 meters Stablitiy: <2%
Positioning	CCD Camera positioning Accuracy: 0.02 mm
Cooling	3 KW Water Cooling included. 20-25. 33 L/min cooling water required Power for water chiller: AC 220V +/- 10%, 50Hz, single phase, 2800 W
Compliance	CE Certified NRTL certification are available upon request at extra cost
Shipping Weight and Dimension	TBA
Application Notes	TBA
