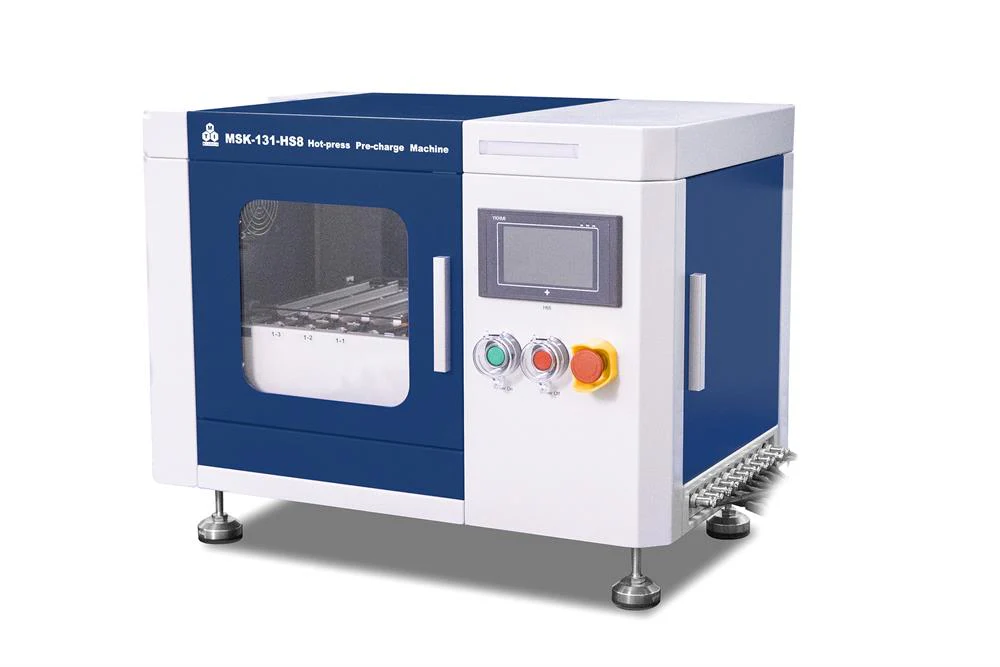

8-channel Hot Press Machine for Pouch Cell SEI Formation (Max. 120*80 mm, One-Side Tabs, 1T, 90°C ) - MSK-131-HS8
HomeStore

8-channel Hot Press Machine for Pouch Cell SEI Formation (Max. 120*80 mm, One-Side Tabs, 1T, 90°C ) - MSK-131-HS8

8-channel Hot Press Machine for Pouch Cell SEI Formation (Max. 120*80 mm, One-Side Tabs, 1T, 90°C ) - MSK-131-HS8

$26,898.00
8-channel Hot Press Machine for Pouch Cell SEI Formation (Max. 120*80 mm, One-Side Tabs, 1T, 90°C ) - MSK-131-HS8—
$26,898.00

The Story

MSK-131-HS8 is a compact 8-channel hot press system designed to deliver precise and constant pressure ranging from 200 to 1000 kg. The system provides a uniform pressure load and controlled thermal environment for pouch cell testing. An integrated battery analyzer continuously monitors the voltage of each tested pouch cell, while programmable battery testing functions enable low-current charging to accelerate SEI formation of the pouch cells.

MSK-131-HS8 is an ideal solution for achieving efficient, consistent, and high-quality lithium-ion pouch cell formation.


SPECIFICATIONS:
Feature
  • Compact size for space-saving and easy to use
  • PLC control system simplifies HMI with a touchscreen panel
  • Pressure plate adopts special treatment with high accuracy and small thermal deformation
  • 4 layers of pressure plate, each layer can be used for 2 batteries, a total of 8 channels
Power Requirement
  • AC220V ±10%, 50Hz/60Hz, single phase
  • 1000W
Working Pressure
  • Pressure Delivery: 200~1000kg, ±5kg
Heating Temperature
  • 10°C to 90°C, ± 3 °C at room temperature
Heating speed
  • 80°C per 30mins
Air pressure
  • 0.25-0.8 MPa
Battery Size
  • L: 40-120mm, W: 40-80mm (Tabs on the same side); T:3-12 mm
  • To customize battery sizes, please contact us for more information.
Battery Analyzer (Included)
  • A battery analyzer is included, which is installed at the bottom of the formation machine for synchronous operation.
  • V: 0-5 V;  I: 0-6 A
  • A laptop with pre-installed software is included.
Driven Gas
  • Driven by any standard air compressor, which is not included. Please click the picture on the left to order.
  • 0.4-0.6 MPa
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Dimension       L860mm*W600mm*H600mm
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.

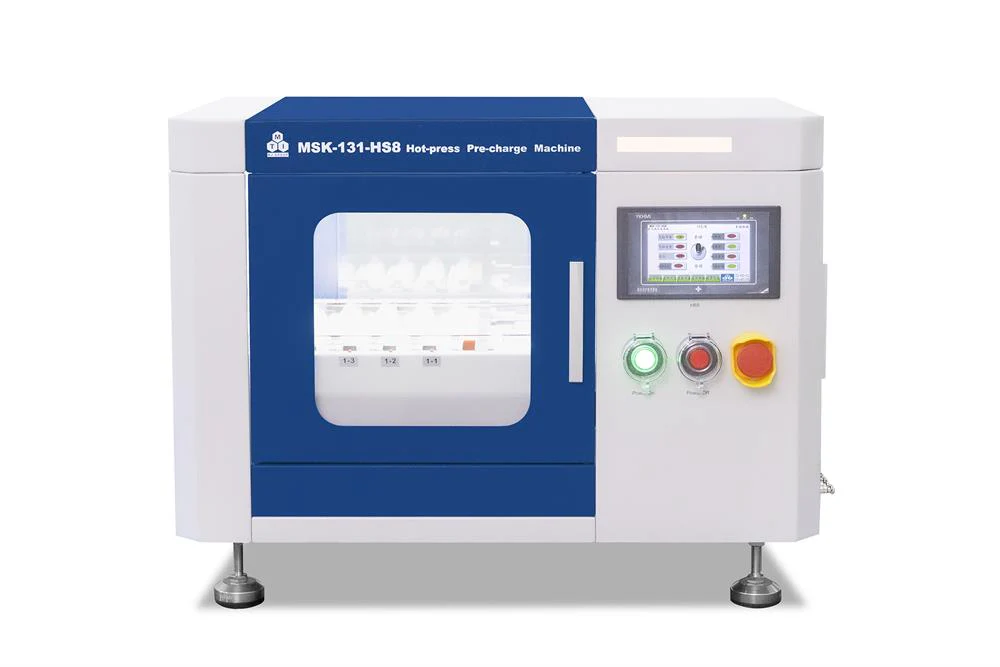

8-channel Hot Press Machine for Pouch Cell SEI Formation (Max. 120*80 mm, One-Side Tabs, 1T, 90°C ) - MSK-131-HS8 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

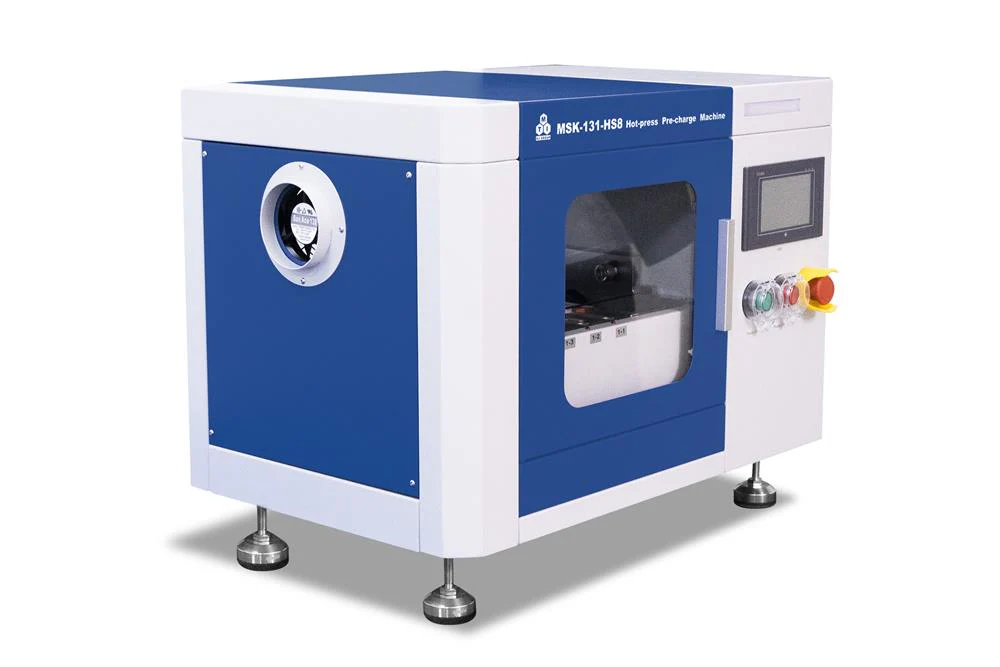

8-channel Hot Press Machine for Pouch Cell SEI Formation (Max. 120*80 mm, One-Side Tabs, 1T, 90°C ) - MSK-131-HS8 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

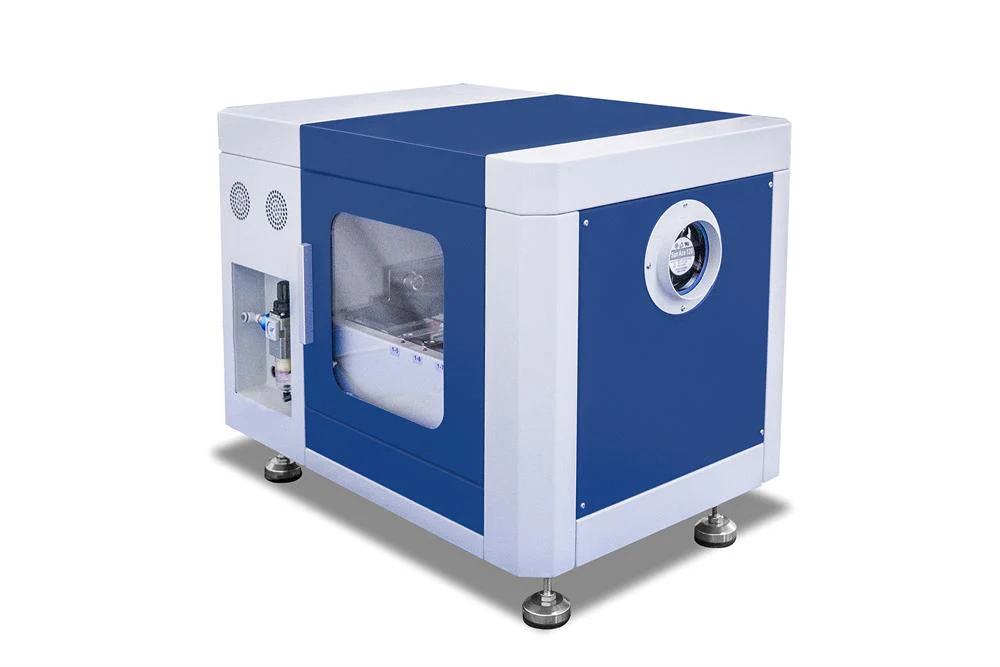

8-channel Hot Press Machine for Pouch Cell SEI Formation (Max. 120*80 mm, One-Side Tabs, 1T, 90°C ) - MSK-131-HS8 - Image 4
