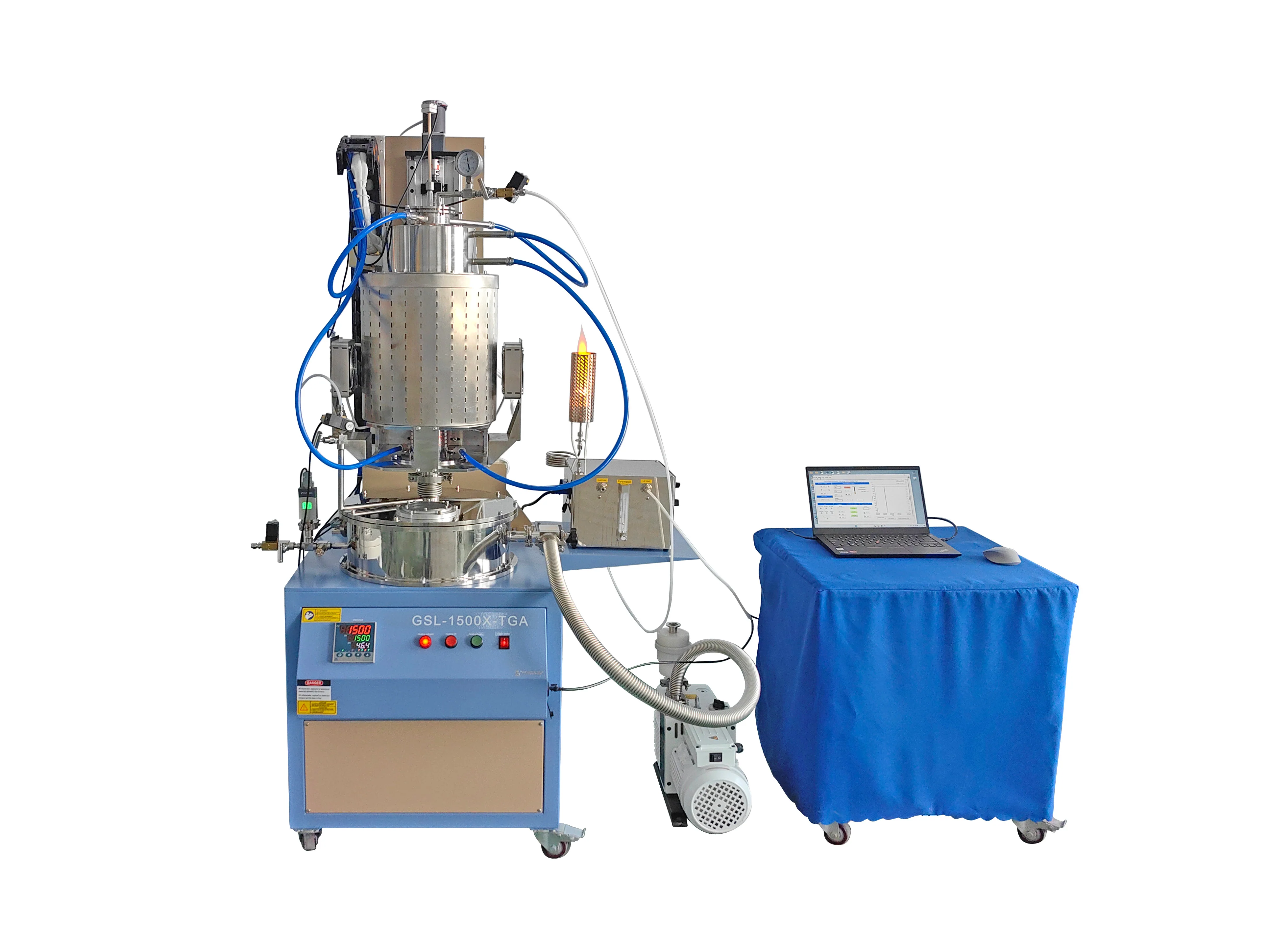

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA
HomeStore

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA

$19,594.75

Original: $55,985.00

-65%
Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA—

$55,985.00

$19,594.75

The Story

GSL-1500X-TGA is a compact tube furnace with a precision TGA (thermal gravimetric analysis) function.  It is a cost-effective and space-saving tool to analyze the phase transition of various materials up to 1500°C  under a controlled atmosphere. Also, it can be used for small sample annealing or sintering.

SPECIFICATIONS

 Furnace Structure

  • Solid Tube furnace with 60mm OD  Tube
  • High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
  • 40mm dia. x 40mm heating zone
  • Precision temperature controller ±0.1 ºC accuracy
  • One standard KF25 port, one φ6.35mm gas inlet, one quartz observation window, and one relief valve
            Thermocouple
            • S Type
            Power
            • 220V AC, 60Hz
            • 6 kW Max
            Working Temperature
            • Continuous: 1400
            • Max. 1500°C for < 1 hours
            Heating Rate
            • Weighing function OFF:  ≤10/min
            • Weighing function ON: 0-200≤3/min, 200-1500≤5/min
            Temperature Controllers
            • Eurotherm temperature controller made in the UK
            • 10 Segments of programmable temperature control via a dedicated computer and software
            • Data can be logged and exported
            • +/- 0.1 ºC temperature accuracy
            Electronic Balance
            • A precision electronic balance ( made in Germany)  is located in the bottom of the heating chamber
            • Accuracy:  0.001 g resolution
            • Sample amount: 1 g minimum;  10 g maximum
            • Max. weighting: 120 g if not for TGA
            Crucibles


            • Two 10 ml alumina ID Φ19* 38mm deep crucibles are included
            Vacuum pump (optional)
            • The TGA  can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pumpPic. 2)
            • Please click the picture below to order the pump and gas delivery system (Pic 3separately:
            •

             Warranty
            • One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

             Compliance
            • CE Certified
            • NRTL or CSA certification is available upon request at extra cost.

            Dimension
             700*600*1900mm
