Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64
HomeStore

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64

$34,993.00

Original: $99,980.00

-65%
Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64—

$99,980.00

$34,993.00

The Story

MSK-131-HMT64 is a horizontal 64-channel hot press machine with precise and constant pressure delivery from 200 to 2000 kg. It is designed to provide a precise and even loading pressure and temperature environment for the tested pouch cell battery.

SPECIFICATIONS:

Feature
  • Compact size for space-saving and easy to use
  • PLC control system and friendly HMI with a touchscreen panel
  • Pressure plate adopts special treatment with high accuracy and small thermal deformation
  • 32 layers of pressure plate, each layer can be used for 2 batteries, a total of 64 channels
Power Requirement
  • AC380V ±10%, 50Hz/60Hz, three-phase
  • 10 kW
Working Pressure
  • Pressure Delivery: 200~2000kg,
  • Pressure Accuracy: ±20kg (≤1000kg); ±40kg (>1000kg)
  • Pressure Resolution: ±1kg
Heating Temperature
  • 10°C to 90°C, ±2℃
Heating speed
  • RT to 80°C in 30mins (~ 2°C/min)
Battery Size
  • L1: 40-170mm, W1: 40-120mm, T: 3-12 mm, S: 10-20 mm, W2: 20-90 mm



  • To customize battery sizes, please contact us for more information.
Battery Analyzer (Optional)
  • A battery analyzer is available upon request and it will be installed at the bottom of the formation machine.
Driven Gas
  • Driven by any standard air compressor, which is not included. Please click the picture on the left to order.
  • 0.4-0.6 MPa
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.

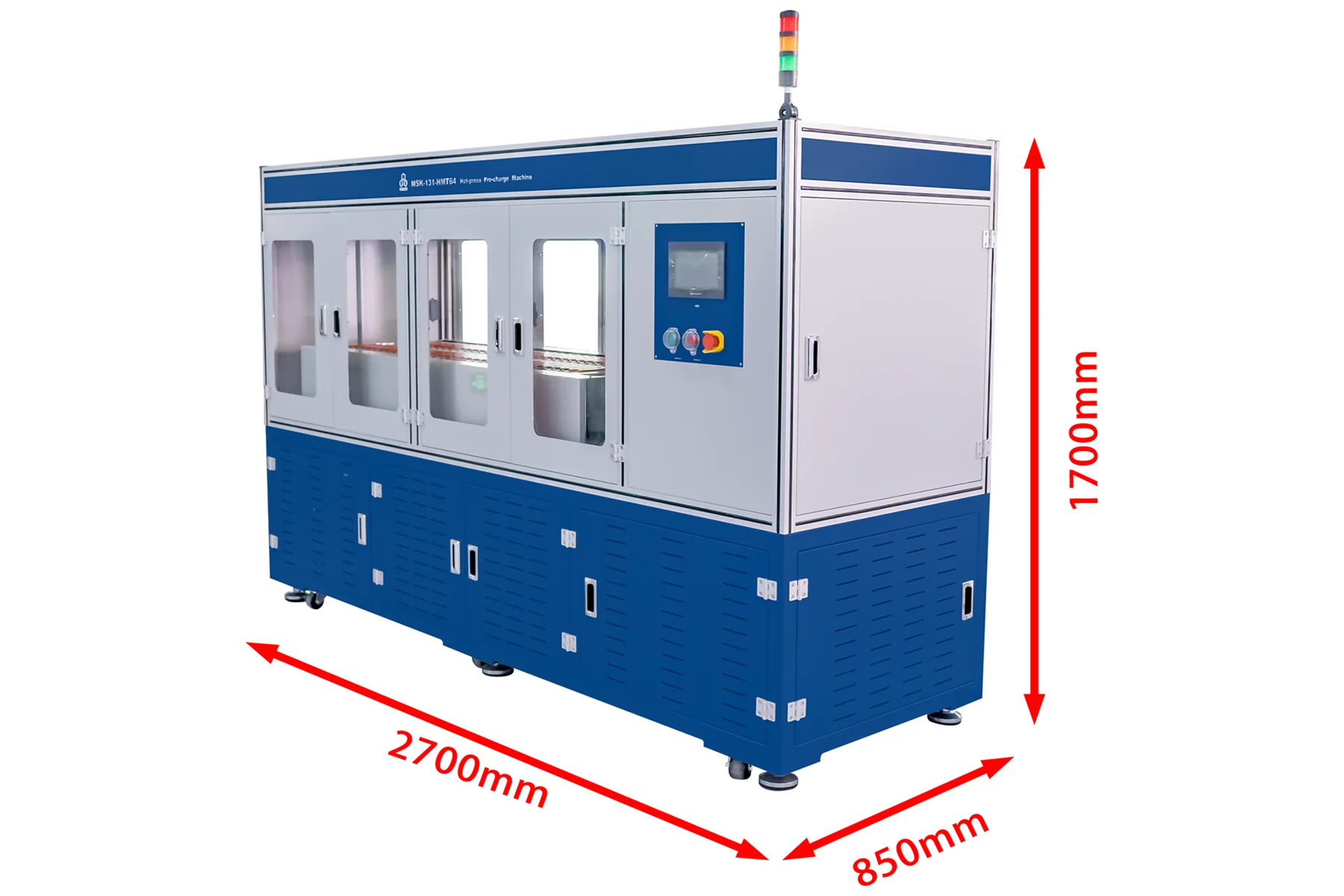

Dimension       L2700mm*W850mm*H1700mm
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.

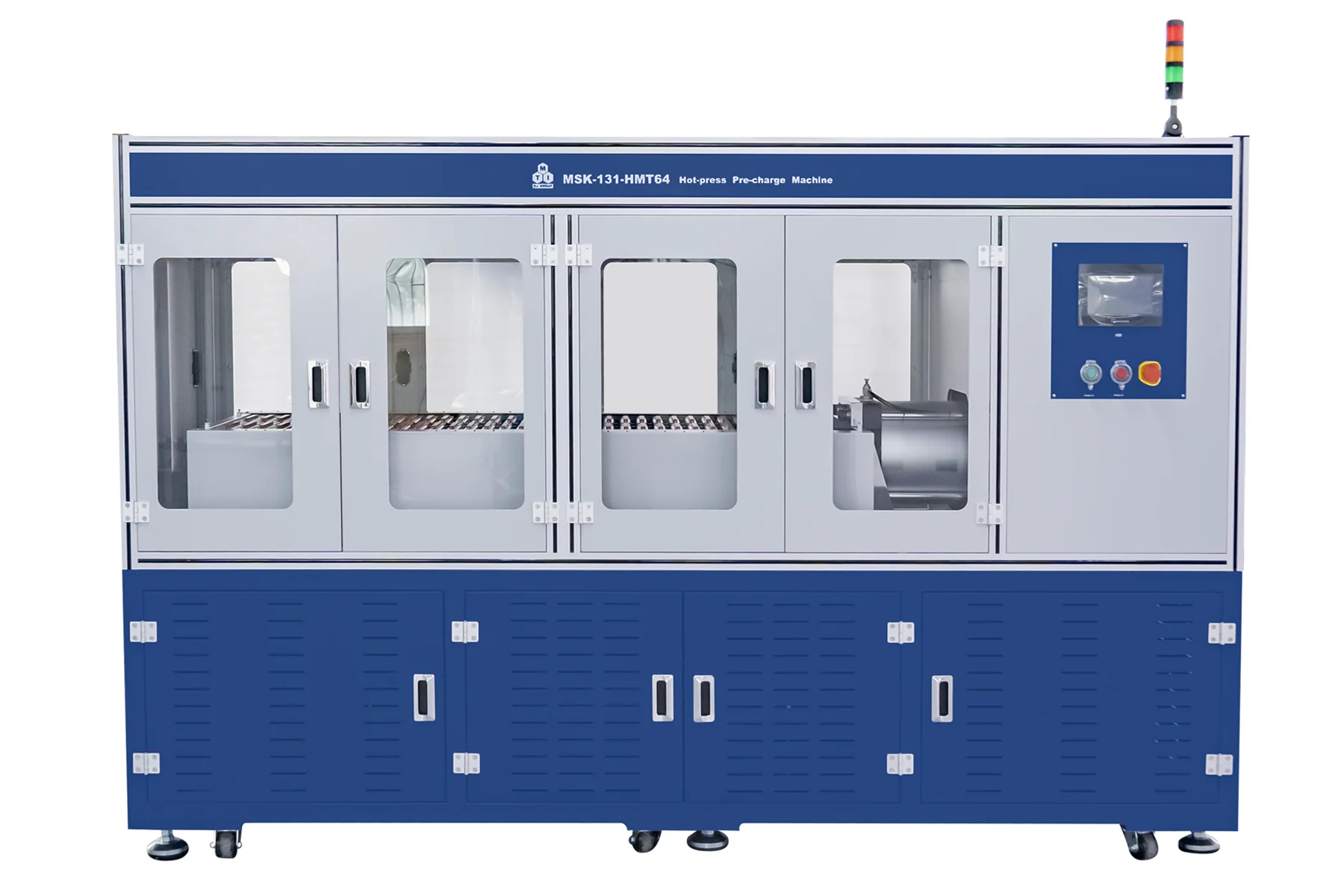

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

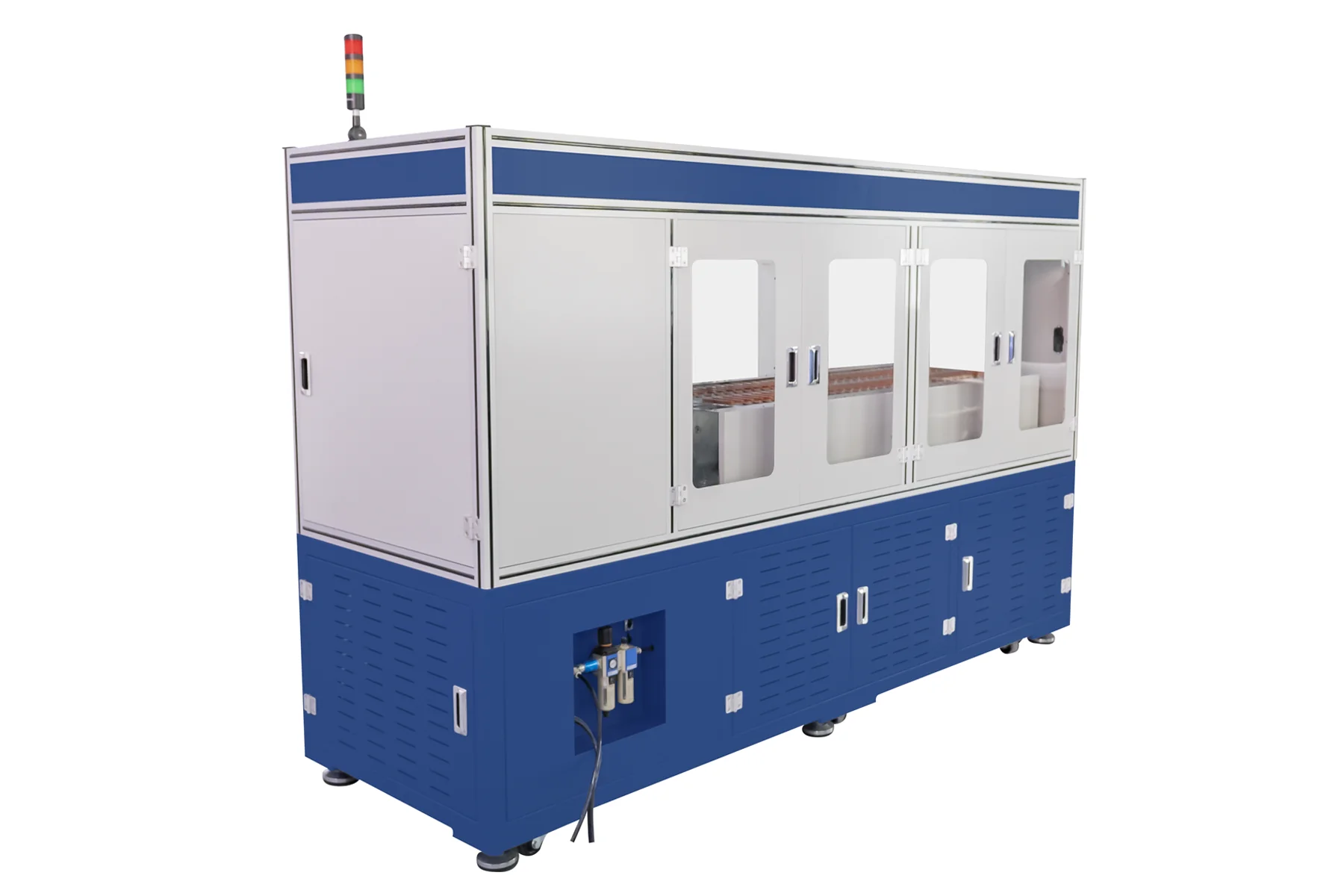

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSK-131-HMT64 is a horizontal 64-channel hot press machine with precise and constant pressure delivery from 200 to 2000 kg. It is designed to provide a precise and even loading pressure and temperature environment for the tested pouch cell battery.

SPECIFICATIONS:

Feature
  • Compact size for space-saving and easy to use
  • PLC control system and friendly HMI with a touchscreen panel
  • Pressure plate adopts special treatment with high accuracy and small thermal deformation
  • 32 layers of pressure plate, each layer can be used for 2 batteries, a total of 64 channels
Power Requirement
  • AC380V ±10%, 50Hz/60Hz, three-phase
  • 10 kW
Working Pressure
  • Pressure Delivery: 200~2000kg,
  • Pressure Accuracy: ±20kg (≤1000kg); ±40kg (>1000kg)
  • Pressure Resolution: ±1kg
Heating Temperature
  • 10°C to 90°C, ±2℃
Heating speed
  • RT to 80°C in 30mins (~ 2°C/min)
Battery Size
  • L1: 40-170mm, W1: 40-120mm, T: 3-12 mm, S: 10-20 mm, W2: 20-90 mm



  • To customize battery sizes, please contact us for more information.
Battery Analyzer (Optional)
  • A battery analyzer is available upon request and it will be installed at the bottom of the formation machine.
Driven Gas
  • Driven by any standard air compressor, which is not included. Please click the picture on the left to order.
  • 0.4-0.6 MPa
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Dimension       L2700mm*W850mm*H1700mm
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.
