MSK-121-EMC is a multifunctional manual slitter for electrode cutting,  pouch cell case cutting, edge cutting of pouch cell, and tab cutting. The maximum cutting dimension is L280*280mm. The fixtures for tab cutting and pouch cell case cutting for 4662 pouch cell are included. The fixture for edge cutting of 4662 pouch cell is optional upon request.

(1) Tab Cutting for Pouch Cell

Dimension

Tabs on the Same Side

Tabs on the Different Side

Cell Length (L1)

\

\

Tab Length after Cutting (L2)

Min.6mm

Min.6mm

Cell Width (W1)

Max.300mm

Max.300mm

Inner Tab Distance (W2)

\

\

Outer Tab Distance (W3)

Max.280mm

\

Tab Width (W4)

\

Max.280mm

Cutting Thickness (H)

Max.0.5mm

Max.0.5mm



(2) Pouch Cell Case Cutting

Dimension

Single Punch Hole

Double Punch Hole

Pouch Case Length (L1)

Max.280mm

Max.280mm

Pouch Case Width (W1)

Max.280mm

Max.280mm



SPECIFICATIONS:

Cutting Blade
  • Total length is 300 mm and effective cutting length is 280 mm.
Cutting Thickness
  • Max. 0.5 mm
Fixture
  • The fixtures for tab cutting and pouch cell case cutting for 4662 pouch cell are included. The fixture for edge cutting of 4662 pouch cell is optional upon request.
Platform Dimension
  • L300mm * W260mm
Equipment Dimension
  • L500mm W300mm  H50mm
Weight
  • ~5 Kg

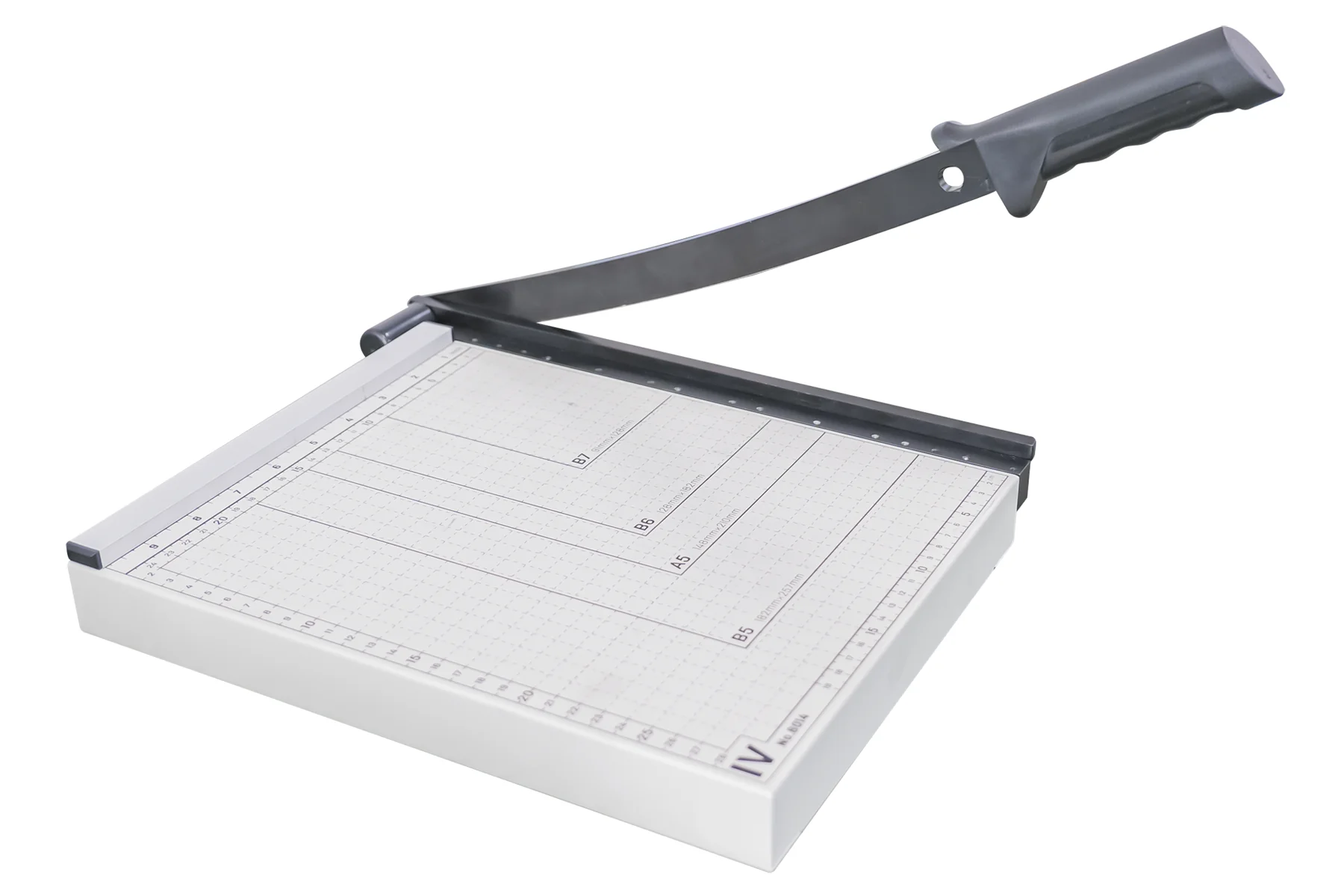

Manual Slitting Machine for Electrode or Pouch Case, and Tab Cutting - MSK-121-EMC - Image 2
