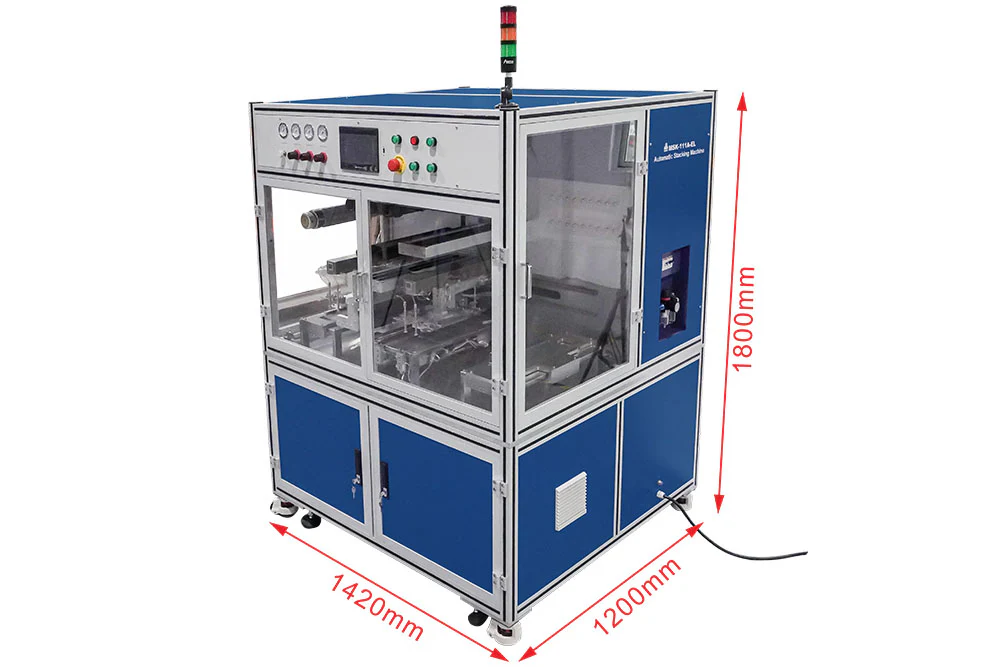

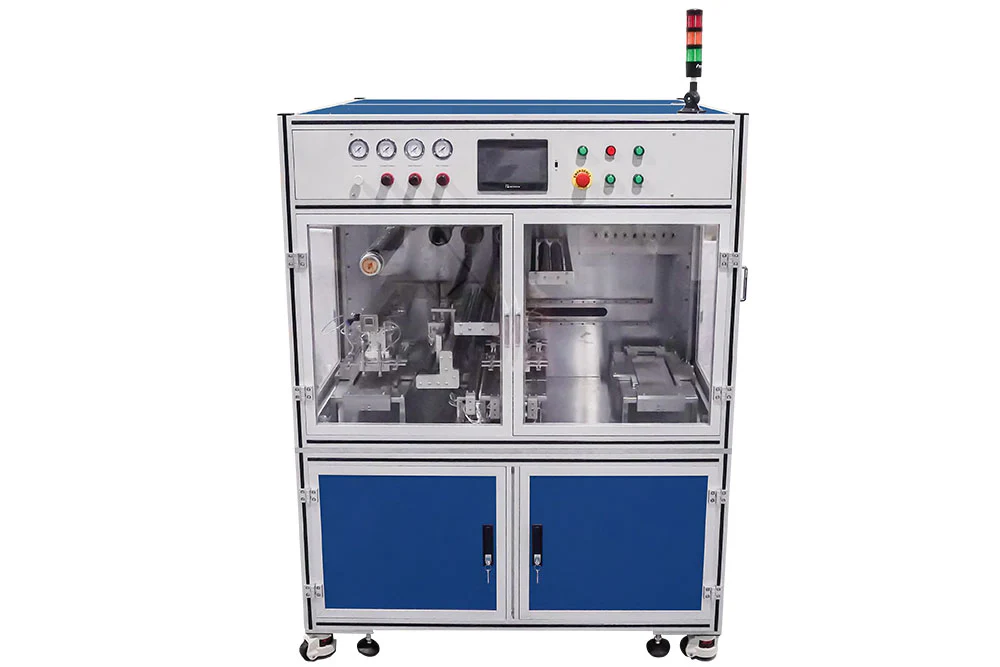

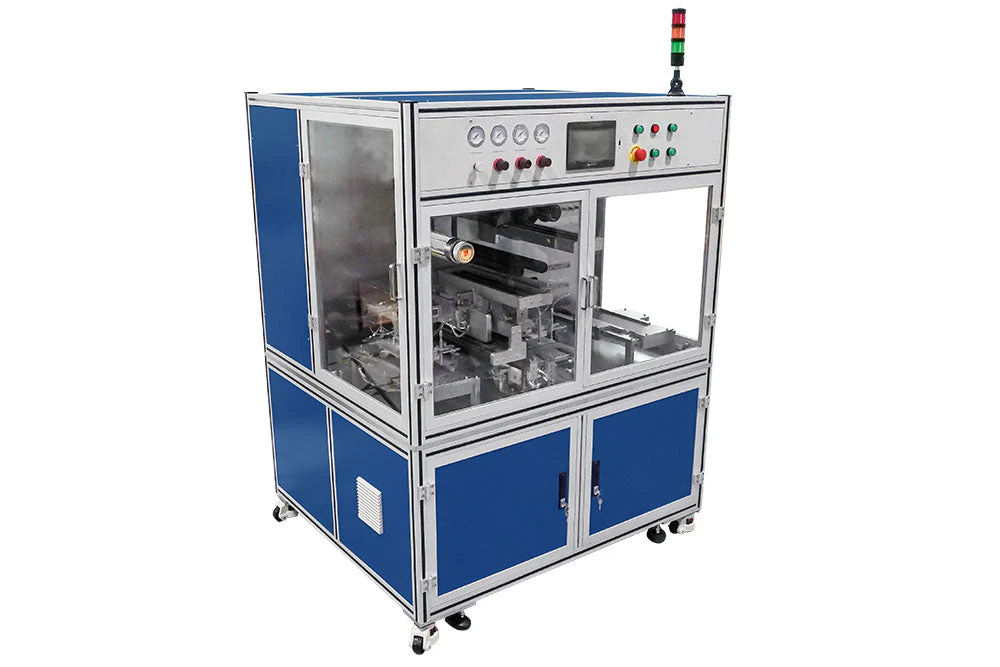

Large Automatic Stacking Machine for Pouch Cell Electrode up to 380x275 mm - MSK-111A-EL

MSK-111A-EL is a large automatic stacking machine for large pouch cell electrodes up to L380 mm x W1200 mm x 15mm thick.

Advanced Features:

• PLC Touch Screen Control allows easy setting
• Auto electrode pick-up & stacking via adjustable vacuum suction manipulator; For different electrode sizes, no need to replace the vacuum suction manipulators
• Adjustable mechanical fixture for accurate electrode positioning
• Unreeling rotors for separator film feeding with heatable slitting/cutting
• Auto-tension control for separator film delivery
• ESD system and dust removing system are built in the operation house
•



SPECIFICATIONS:

Voltage	208-240VAC, 50/60Hz, single phase. AC 110V version is available via a 2000W transformer.
Power	1 KW
Stacking Slot Size for Electrodes	Standard version: Cathode: 324.0 mm L x 162.0 mm W with 55.0 mm L x 24.0 mm W protrude current collector Anode: 328.0 mm L x 165.0 mm W with 55.0 mm L x 22.0 mm W protrude current collector Pouch Cell Size Range: Length 200 -380 mm; Width 100 - 200 mm; Thickness 15 mm (max.), can be customized to thicker one.  The pouch cell size is available upon request
Stacking Type	"Z" fashion stacking
Guide Roller Width	440 mm
Precise Separator Tension Control	>= 5 N
Separator Width	Maximum 250 mm
Stackable Layers	Maximum thickness: 15 mm (can be customized to thicker sizes upon request)
Stacking Speed	Up to 5 layers/min
Aligning Accuracy	±0.5 mm for stacked electrodes
Stacking Fixture	One die set of stacking fixtures is included for immediate use. (Please confirm electrode size before purchase) If you need different size electrode stacking, please inform us before ordering. The additional electrode stacking fixture is available at an extra cost. Each size cell needs one mold/die set fixture
Vacuum Pump	-90 kPa Max. ( 10-2 torr) The vacuum pump is built-in
Operation Procedure	Manually load electrode sheet to sample tray To set up the number of stacking layers To push the button to stack the electrode with the separator automatically Then automatically cut-off separator and manually tape the stacked cell Finally, take out the stacked cell manually
Suggested Air Pressure	0.5 - 0.8 MPa (Air compressor is not included in the standard package. Please click here to order) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.    pic1        pic2
Compliance	CE Certified NRTL certificate is available upon request at an extra cost
