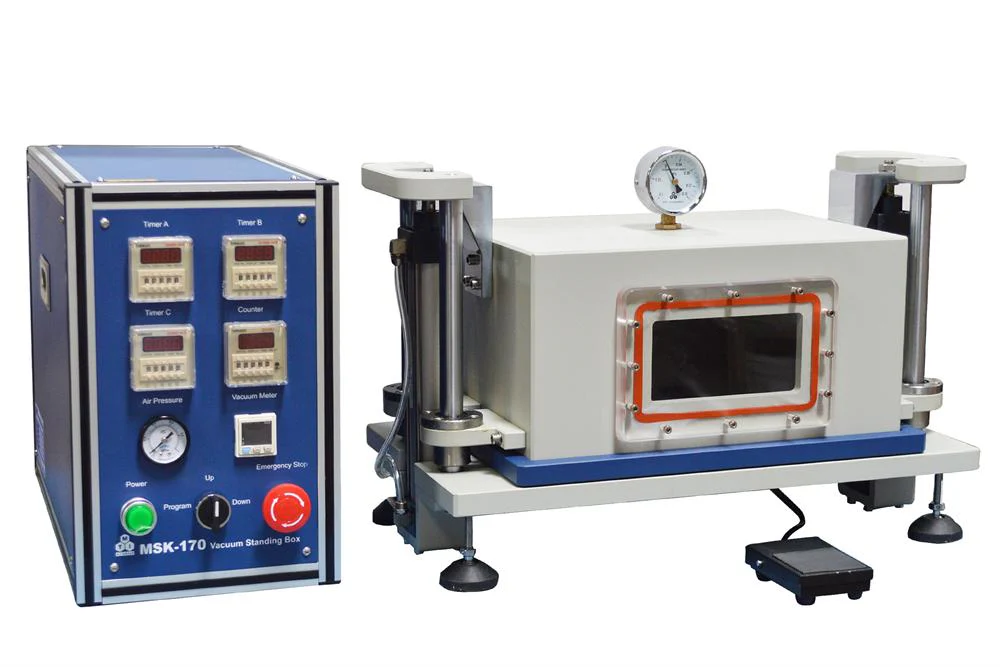

Electrolyte Diffusion & Degassing Chamber for Professional Li-on Battery Research - MSK-170
HomeStore

Electrolyte Diffusion & Degassing Chamber for Professional Li-on Battery Research - MSK-170

Electrolyte Diffusion & Degassing Chamber for Professional Li-on Battery Research - MSK-170

Select Model
From $2,309.30

Original: $6,598.00

-65%
Electrolyte Diffusion & Degassing Chamber for Professional Li-on Battery Research - MSK-170—

$6,598.00

$2,309.30

The Story

MSK-170 electrolyte diffusion & degassing chamber is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyte after it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries (especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.

New version MSK-170L with the large chamber is available as optional!

SPECIFICATIONS:
Model MSK-170 MSK-170L
Machine Structure
Slot Trays (included)
  • Cylinder Slot Tray is working for the cylindrical cell type of battery samples. (96 slots)
  • Cylinder slot size: 20mm Dia. x 30mm Depth
  • Tray Dimension: 254mm L x 195mm W x 95mm H
  • Rectangular Slot Tray is working for pouch cell type of battery samples. (21 slots)
  • Rectangular slot size: 177mm W x 30mm Depth
  • Tray Dimension: 293mm L x 185mm W x 95mm H

Glovebox Compatible
  • Feedthrough is included to allow operation inside MTI Glove Box (Click on the second pictures for details)
  • Such a Feedthrough ensures air-tightness of the glove box (Click on the third, fourth, and fifth pictures to enlarge)
  • Please use high purity inert gasses (Ar or N2), when operating in the glovebox, using Air Compressor when outside the glovebox.
  • Air Pressure Range 0 - 1 Mpa (0 - 99 psi) Adjustable (Air Compressor is required, but not included. Please click here to order)

Vacuum Level
  • -90 kPa Max. (for second vacuum step, first vacuum step require -60kPa)
  • The vacuum pump is not included. Please click here to order at extra cost.
  • If you have your own pump with KF25 PORT, please order Barbed fitting to KF-25 Adapter at extra cost.
Power Supply 110-240 V, Single Phase 50/60Hz
Max. Power 50W
Compressed Air ≥0.6Mpa, 1.5Mpa
Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator.
 pic1  pic2
Chamber Body 12mm thick Aluminum case with the observation window
Gas Filling Rate <= 5 psi
Vacuum Level
  • Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently
  • Vacuum mode (once or twice) can be selected
  • Easy program setting for specific vacuum condition
  • -0.9 - 0 kPa adjustable (Vacuum pump is required, but not included. Please click here to order)
Air Inflation Time
  •    0 - 99.99 sec
Vacuum Condition Hold Time
  • 0 - 99.99 sec
Operation Temperature
  •  -20 to 40
Application Notes
  • Attention: High-purity inert gasses and Vacuum Pump are necessary for operating the MSK-170/ MSK-170L Vacuum Standing Box, please order them from your local store or the related products below
