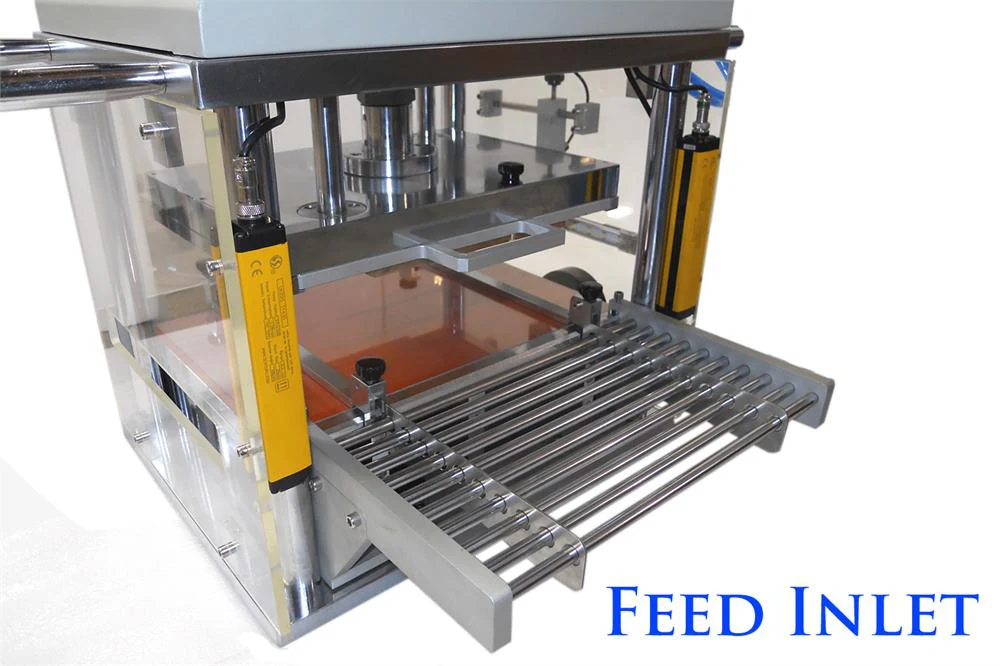

MSK-180L is a CE Certified semi-automatic electrode die cutter and a upgraded version of MSK-180. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs. The shape of the electrodes it produces is also handy for the latter processing steps of tab welding by MSK-800 and electrode stacking by MSK-111A. The IR sensor (Safety Curtain) built in the front of the machine ensures operation safety when electrode sheets are fed from the front.
SPECIFICATIONS:
Features |
|
| Working Voltage | AC110V-220V, 50/60 Hz, single phase |
| Max. Power Consumption | 10W (DC24V adaptor is included) |
| Air Pressure | recommend 60-80 psi (Air compressor is not included. Please click here to order) |
Safety Sensor |
Built in IR sensor (Safety Curtain) to protect against hand injury during electrode feeding |
| Die Set (Customized) | Available upon request with delivery time of 4 weeks (Please email us for details) |
| Working Table Area | 380mm(L) x 380mm(W) |
| Cutting Accuracy | ±0.1mm |
| Air Cylinder | 3 tons Max. pressure |
| Tensile Cylinder | 0.15 tons pressure |
| Feeding | Manually |
| Production Yield | 800 - 2000 pieces of electrodes per hour |
| Product Dimensions | 580mm(L) x 480mm(W) x 1120mm(H) |
| Compliance | CE Certified |
| Warranty | One Year limited warranty with lifetime support |
| Operation Manual & Video |   |
| Net Weight | 140kg |
