100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320

Select Model
From $52,494.75

Original: $149,985.00

-65%
100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320—

$149,985.00

$52,494.75

The Story

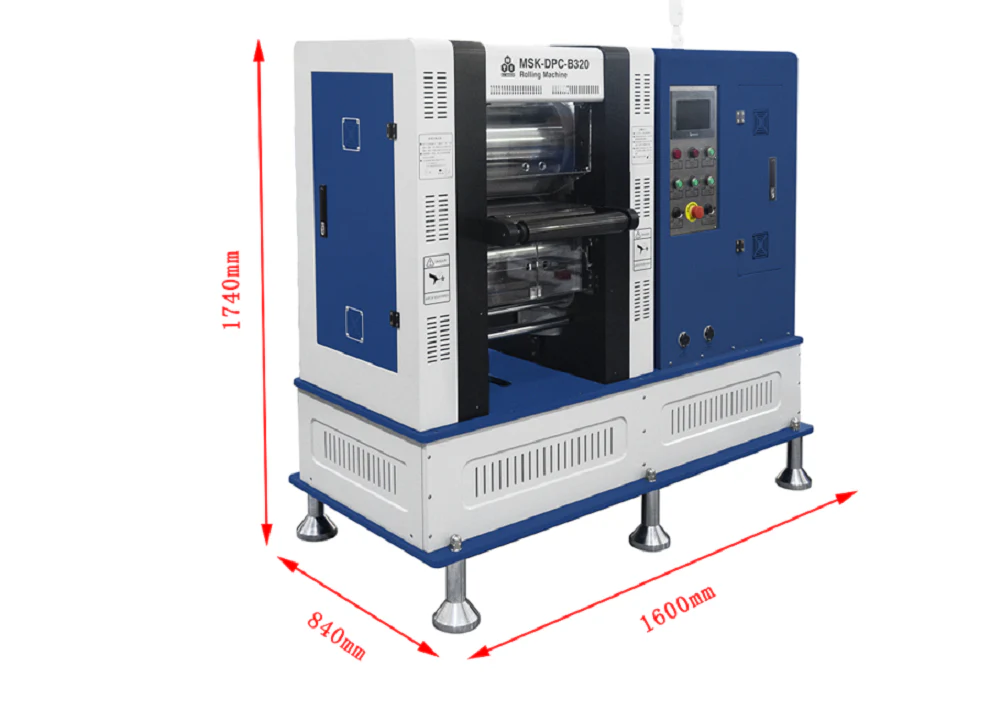

MSK-DPC-B320 is an automatic roll-to-roll calendering press system with precision digital pressure control for battery electrode production.
It has 370 mm width and 320 diameter high strength alloy rollers and can produce electrodes up to 350 mm width at 6 m/min max speed and the rolling force of 100 metric tons.

SPECIFICATIONS:

Working Voltage
  • AC 220V or 380V 50/60 Hz Three Phase
  • Max. Power Consumption: 6 KW

Rollers (one pair)
  • Dimensions: 320mm Diameter x 370mm Width
  • Material: Hardening Tool Steel 9Cr3Mo with HRC 65 -70
  • Hardening material layer thickness: 10 mm
  • Effective Rolling Width: ≤ 350 mm
  • Max. Diameter of delivering and winding: 320 mm
  • Max. Force: 100 T
Press gap
  • 0 - 2 mm adjustable
  • Tolerance: 0.001 mm
Rolling Speed
  • 0.3 - 6 Meter / Minute adjustable by Touch Screen Control Panel

Press Flatness
  • Thickness Accuracy: ± 0.0025mm
  • Surface Roughness: ≤ Ra 0.8

Pressure Control
  • Pressure load: 1 - 100 Tons adjustable by Touch Screen Control Panel
  • Real-time pressure display with data saved function

Accessories Included
  • Rolling to Roller cleaning function is built-in
  • Edge cutting device included
  • Dust Removing device installed
  • Roller installation and unload cart included

Roll to Roll Device (Optional)
  • Roll-to-roll unwinding and winding unit can be integrated on the rolling machine.



  • Maximum Roller Width: 350 mm
  • Feeding and Collecting Roller Diameter: 250 mm
  • Tension Control: Maximum 50 N

Utility and Environment
  • Compressed air: 0.5~0.8 Mpa (Air compressor is not included)
  • Environment Temperature: 25 ± 3
  • Environment Humidity: 0~90RH

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost

Application Notes
  • It is not allowed to use any MTI product in any hazardous location, especially prohibit from using in Class I environments (flammable gasses & vapor).

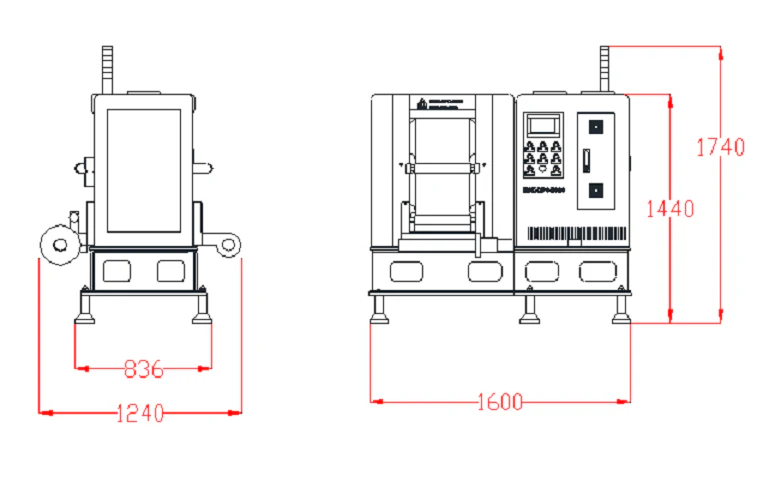

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

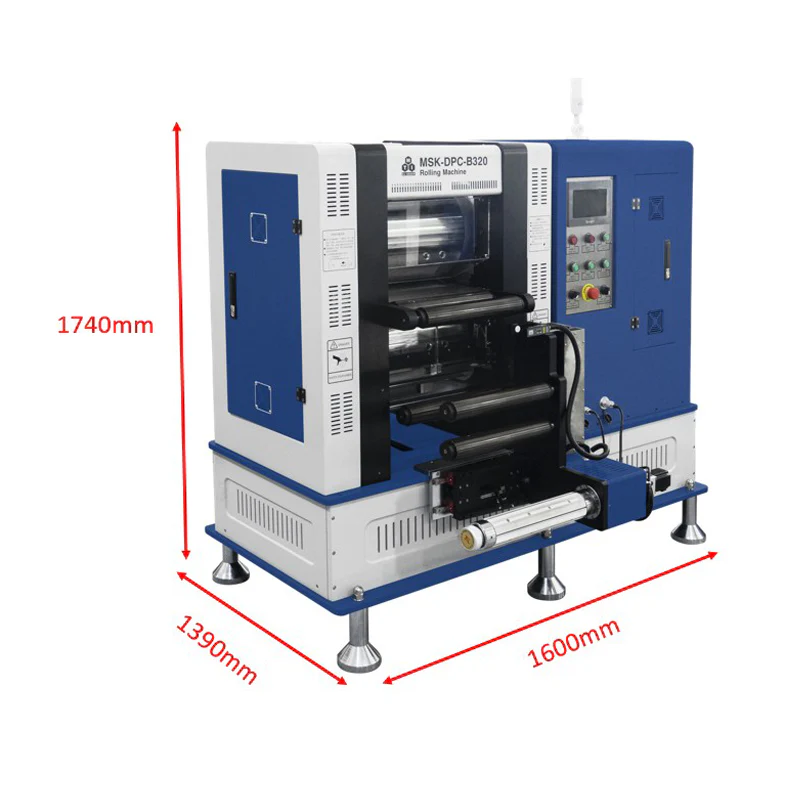

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSK-DPC-B320 is an automatic roll-to-roll calendering press system with precision digital pressure control for battery electrode production.
It has 370 mm width and 320 diameter high strength alloy rollers and can produce electrodes up to 350 mm width at 6 m/min max speed and the rolling force of 100 metric tons.

SPECIFICATIONS:

Working Voltage
  • AC 220V or 380V 50/60 Hz Three Phase
  • Max. Power Consumption: 6 KW

Rollers (one pair)
  • Dimensions: 320mm Diameter x 370mm Width
  • Material: Hardening Tool Steel 9Cr3Mo with HRC 65 -70
  • Hardening material layer thickness: 10 mm
  • Effective Rolling Width: ≤ 350 mm
  • Max. Diameter of delivering and winding: 320 mm
  • Max. Force: 100 T
Press gap
  • 0 - 2 mm adjustable
  • Tolerance: 0.001 mm
Rolling Speed
  • 0.3 - 6 Meter / Minute adjustable by Touch Screen Control Panel

Press Flatness
  • Thickness Accuracy: ± 0.0025mm
  • Surface Roughness: ≤ Ra 0.8

Pressure Control
  • Pressure load: 1 - 100 Tons adjustable by Touch Screen Control Panel
  • Real-time pressure display with data saved function

Accessories Included
  • Rolling to Roller cleaning function is built-in
  • Edge cutting device included
  • Dust Removing device installed
  • Roller installation and unload cart included

Roll to Roll Device (Optional)
  • Roll-to-roll unwinding and winding unit can be integrated on the rolling machine.



  • Maximum Roller Width: 350 mm
  • Feeding and Collecting Roller Diameter: 250 mm
  • Tension Control: Maximum 50 N

Utility and Environment
  • Compressed air: 0.5~0.8 Mpa (Air compressor is not included)
  • Environment Temperature: 25 ± 3
  • Environment Humidity: 0~90RH

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost

Application Notes
  • It is not allowed to use any MTI product in any hazardous location, especially prohibit from using in Class I environments (flammable gasses & vapor).
