Dry Mixing Mixer & Dispenser with Water Cooling & Adjustable Speed Up to 25K RPM -MSK-FS-152-WC
HomeStore

Dry Mixing Mixer & Dispenser with Water Cooling & Adjustable Speed Up to 25K RPM -MSK-FS-152-WC

Dry Mixing Mixer & Dispenser with Water Cooling & Adjustable Speed Up to 25K RPM -MSK-FS-152-WC

$3,998.00
Dry Mixing Mixer & Dispenser with Water Cooling & Adjustable Speed Up to 25K RPM -MSK-FS-152-WC—
$3,998.00

The Story

MSK-FS-152-WC  is a water-cooling dry powder mixing dispenser for dry electrodes. It is equipped with a water-cooling coil to minimize heat buildup within the mixing chamber and maintain the stability of the sample material from thermal degradation.  It has three segments for speed adjustment up to 25K RPM.   This device is ideal for making dry electrodes for batteries and electrolytes/fuel cells. It is also an excellent tool for dry crushing the calcined ceramic material within minutes.

Specification

Working Voltage
  • AC110V, Single Phase, 60Hz
Output Power
  • 1800W

Structure
  • The dispenser and mixing Chamber are constructed of SS304 stainless steel to offer corrosion resistance.
  • A top-mounted water cooling coil is used to keep the mixing chamber temperature during operation.
  • Two Dispenser Cover Lock Screws ensure structural stability during operation.
  • Built-in Fixing Knob Lock and Eject handle enable to unload sample by rotating the mixing chamber, no lifting required.
  • Built-in Timer Control Knob for precision time setting of operation time.
  • A Speed Controller is connected to the device via an extension cord for adjustable rotation speed.

Mixing Chamber
  • Interior Mixing Chamber Dimension: Dia 150mm x 80mm H
  • Mixing chamber is made of SS304 stainless steel
  • Built-in three-layer SS304 Stainless-steel mixing blades
  • Max. Mixing Speed: 28000 RPM
  • Max. Capacity: 400g
  • Feeding Granularity: 70-300 mesh.

Time Control
  • A built-in Timer Control Knob on the left side of the dispenser allows to setup the mixing duration.
  • Adjustable Operational Duration: 0-5 minutes

Speed Controller
  • A separated Speed Controller is connected to the dispenser via a extension cord. with a built-in fuse for electrical circuit protection.
  • Rated Voltage: AC110V
  • Rated Current: 15A
  • Max. Output Power: 1800W
  • Required an extension cord of 15 amps (up to 50ft) at 18 AWG

 Dual Operation Modes:

VAR Mode: Allows adjustable mixing speed by rotating the rotary knob to select: Low, Medium, High.

FULL Mode: Operates the Dispenser at maximum fixed speed for high-intensity mixing applications.

Water Cooling Unit

Digital Temperature Controlled Recirculating Water Chiller with 16L / min Flow, 2.8K BTU/hr - EQ-KJ5000
  • Recirculating Water Chiller with 6 Liters  Tank, 16L/min -KJ5000 is included for immedaite using
Compliance
  • CE Certified
Application Note
  • It is excellent for mixing dry powder only at a lower temperature in the mixing chamber. ( < 10oC)
  • For optimal performance and longevity of this device, thoroughly clean the mixing chamber with ethanol and dry the surface after each use.
  • This water chiller is included to keep the chamber temperature less the 6oC
  • Warning:  this mixer is not suitable for wet mixing
  • You may click the link below to find more advanced mixer











Dry Mixing Mixer & Dispenser with Water Cooling & Adjustable Speed Up to 25K RPM -MSK-FS-152-WC - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

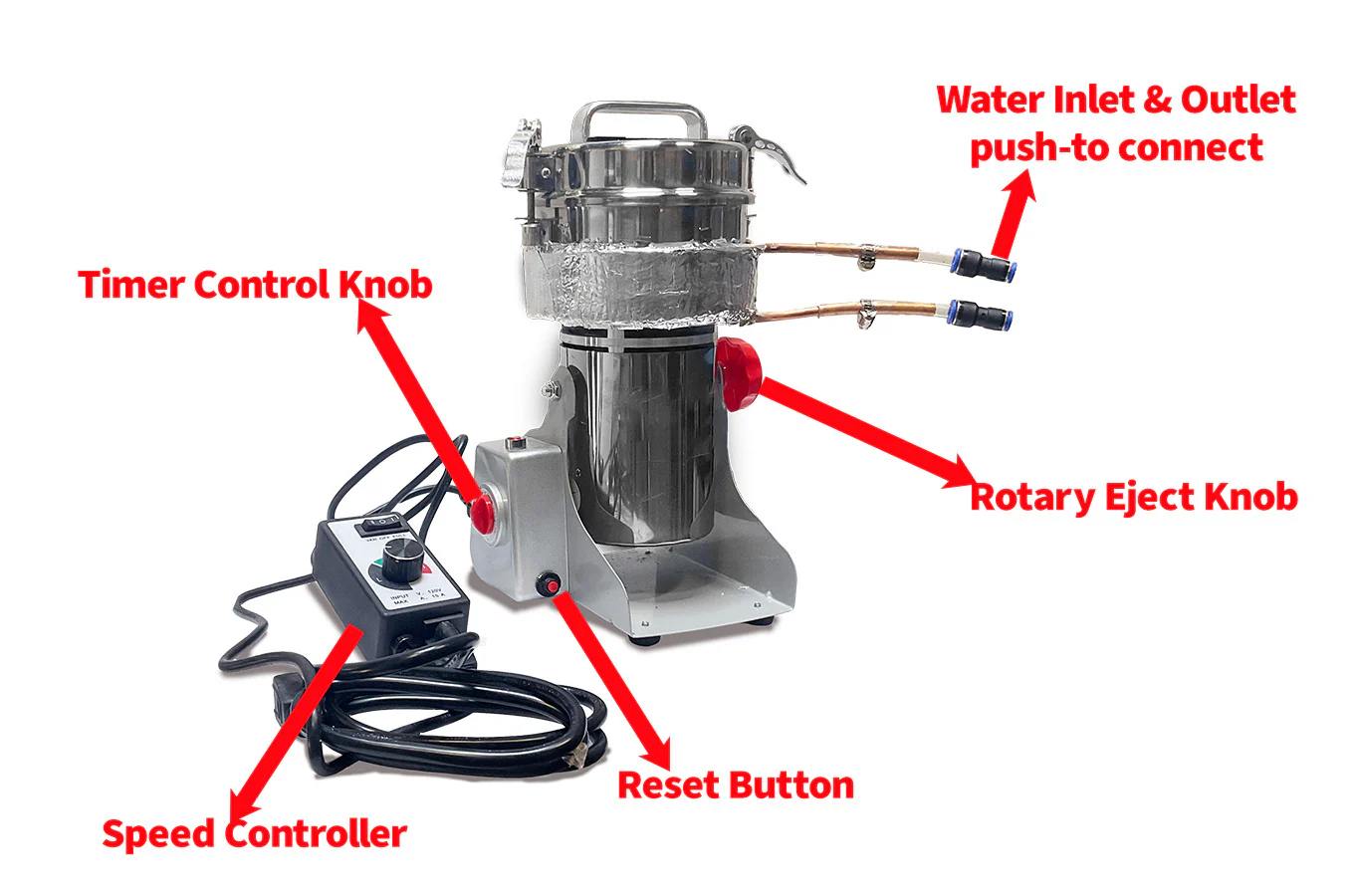

Dry Mixing Mixer & Dispenser with Water Cooling & Adjustable Speed Up to 25K RPM -MSK-FS-152-WC - Image 3
