Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E

Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E

Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E

Select Configuration

From $13,999.30

Original: $39,998.00

-65%

Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E—

$39,998.00

$13,999.30

The Story

MSK-HRP-3-E is a hot rolling press with an adjustable gap from 0 - 6 mm. MSK-HRP-3-E is equipped with adjustable pressure of up to 10 metric tons, accommodating to wide variety of applications. Besides, two single set point temperature controllers up to 230°C provide the independent control for two rollers which increases the control accuracy and uniformity of temperature. The hot rolling machine is an ideal tool for calendaring and lamination for battery electrodes.

SPECIFICATIONS

Features	Dual programmable temperature controllers for two rollers, up to 230°C independently Apply pressure up to 10 metric tones via a manual hydraulic pump Adjustable gap between rollers (0~6 mm) with micrometer thickness indication Rollers are made of high-quality tool steel with Cr plated Rolling direction selectable (back and forth), easy-to-return material
Power	AC 208 - 240 V single phase, 50/60 Hz Total: 4200 W 6 feet power cable is included, but the power plug is not included. Please click here to order the plug
Rollers Size & Surface Hardness	Diameter: 200 mm (8") Width: 250 mm ( 10") Linear Speed: 5 - 58 mm/sec adjustable Speed Display: 0 - 40 mm/sec (Actual Speed = Displayed Speed x 1.5) HRC 60-62 (Cr plated) Never roll materials with hardness > 50HRC
Temperature Controllers	Two temperature controllers enable control of the temperature for the two rollers independently 230°C maximum for less than one hour (<200°C continuously) Recommended Heating Rate: ~3°C/minute Precision temperature controller with +/- 2°C Accuracy
Roller gap accuracy	0.01 mm by two digital micrometers
Rolling Thickness	0~ 6 mm adjustable
Compliance	CE Certified UL, TUV or CSA certification is available upon request at extra cost

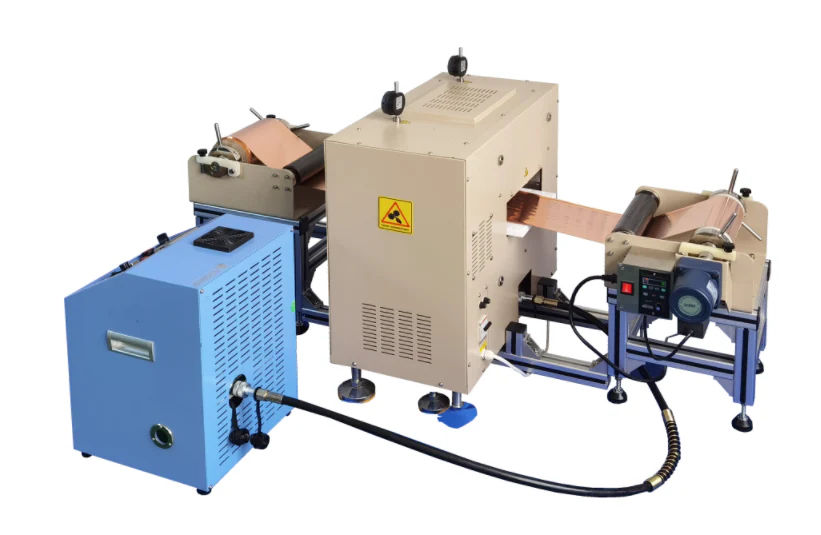

Optional	You may order an electric hydraulic pump to keep constant pressure (Pic. 1-2) Please consider the R2R rolling and laminating device below for Roll to Roll pressing. (Click pic 3 - 5 to order.) Pic. 2 Pic. 3 Pc. 4 Pic. 5
Application Notes	Never roll materials with hardness > 50HRC Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendaring decrement of 0.02mm compared to the sheet's original thickness. Clean the roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion

Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

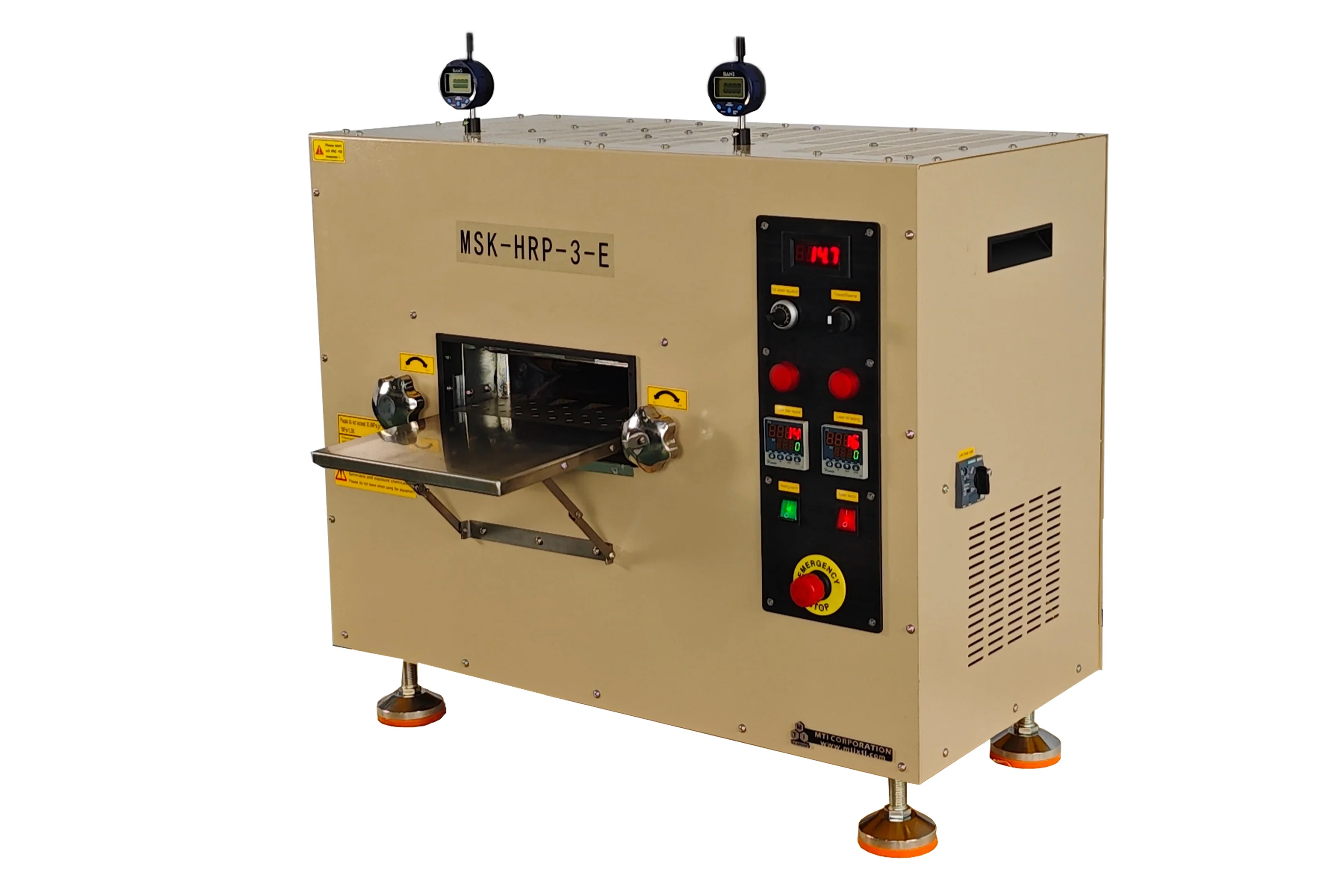

Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

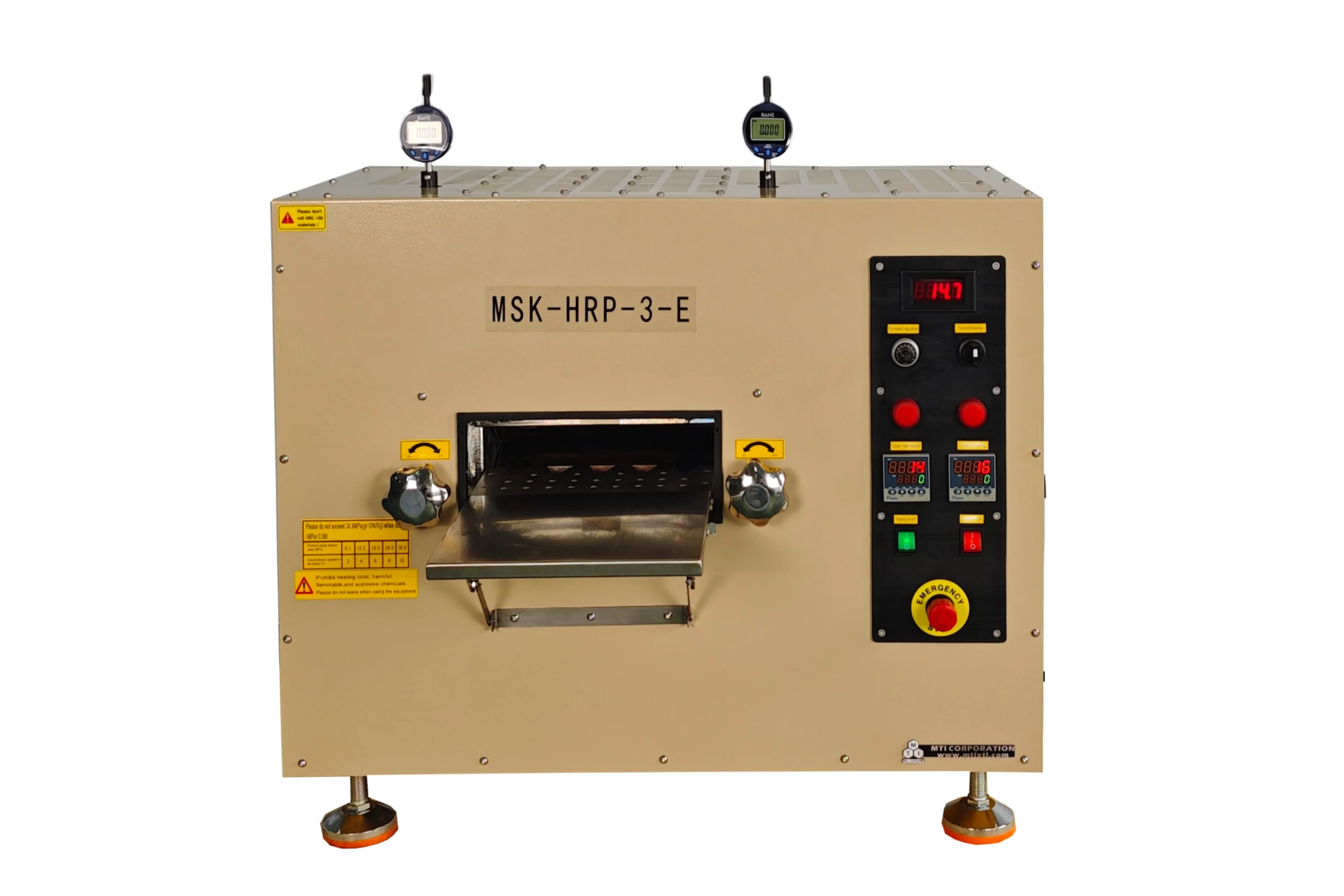

Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

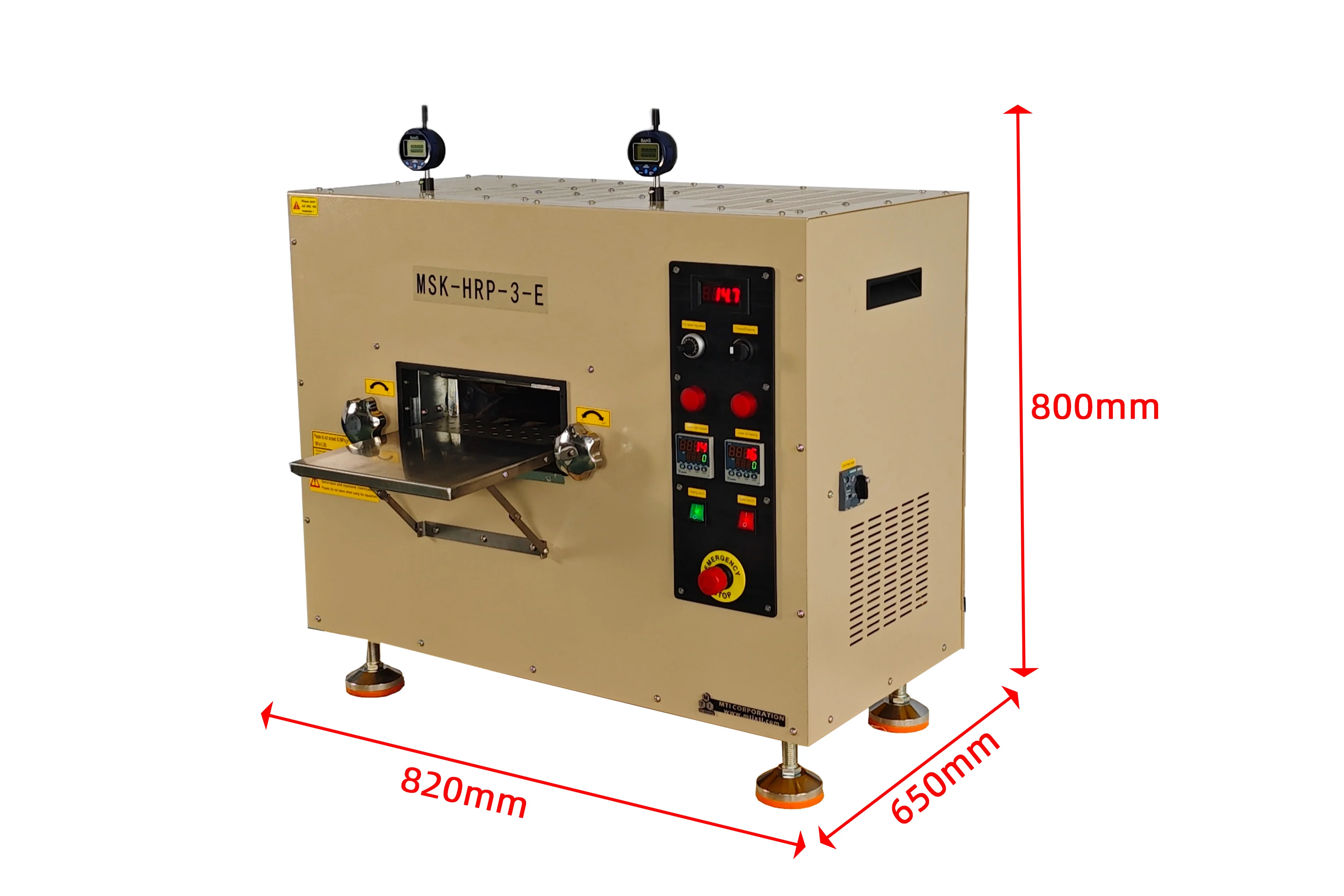

Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSK-HRP-3-E is a hot rolling press with an adjustable gap from 0 - 6 mm. MSK-HRP-3-E is equipped with adjustable pressure of up to 10 metric tons, accommodating to wide variety of applications. Besides, two single set point temperature controllers up to 230°C provide the independent control for two rollers which increases the control accuracy and uniformity of temperature. The hot rolling machine is an ideal tool for calendaring and lamination for battery electrodes.

SPECIFICATIONS

Features	Dual programmable temperature controllers for two rollers, up to 230°C independently Apply pressure up to 10 metric tones via a manual hydraulic pump Adjustable gap between rollers (0~6 mm) with micrometer thickness indication Rollers are made of high-quality tool steel with Cr plated Rolling direction selectable (back and forth), easy-to-return material
Power	AC 208 - 240 V single phase, 50/60 Hz Total: 4200 W 6 feet power cable is included, but the power plug is not included. Please click here to order the plug
Rollers Size & Surface Hardness	Diameter: 200 mm (8") Width: 250 mm ( 10") Linear Speed: 5 - 58 mm/sec adjustable Speed Display: 0 - 40 mm/sec (Actual Speed = Displayed Speed x 1.5) HRC 60-62 (Cr plated) Never roll materials with hardness > 50HRC
Temperature Controllers	Two temperature controllers enable control of the temperature for the two rollers independently 230°C maximum for less than one hour (<200°C continuously) Recommended Heating Rate: ~3°C/minute Precision temperature controller with +/- 2°C Accuracy
Roller gap accuracy	0.01 mm by two digital micrometers
Rolling Thickness	0~ 6 mm adjustable
Compliance	CE Certified UL, TUV or CSA certification is available upon request at extra cost
Optional	You may order an electric hydraulic pump to keep constant pressure (Pic. 1-2) Please consider the R2R rolling and laminating device below for Roll to Roll pressing. (Click pic 3 - 5 to order.) Pic. 2 Pic. 3 Pc. 4 Pic. 5
Application Notes	Never roll materials with hardness > 50HRC Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendaring decrement of 0.02mm compared to the sheet's original thickness. Clean the roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion
