The Story

MSK-SFM-9-5L is a Four-shaft (two dispersing, two stirring) planetary vacuum mixer with a 5-liter container and PLC Touch Panel Control. Such a vacuum mixer incorporates the unique dual-shaft stirring design to ensure a gas-bubble-free blending of complex materials under vacuum with extreme uniformity. Furthermore, an observation window on the mixing tank provides a better way to monitor the entire mixing process. MSK-SFM-9-5L is an excellent tool for preparing LiCoO3, LiFePO4, LiNCMO2, and ceramic slurries and provides much better results in dispersion and uniformity.

SPECIFICATIONS

Working Voltage
  • 208 - 240V AC, 50/60Hz, Single phase, 5.5 kW
Mixing Method/Blades
  • Rotation + Revolution
  • Dual Stirring Blades+ Dual Dispersing Blades + One Spatula
Speed
  • Stirring Seed: 2-112 rpm (suggested lower limit speed as 5 rpm)
  • Dispersing Speed: 0-6900 rpm (suggested lower limit speed as 100 rpm, please keep dispersing time less than 30 min in 6000-6900 rpm).
Slurry Viscosity
  •  Max. 100,000 mPa·s (cps)
Vacuum Rate
  • -0.098 Mpa (without slurry loading)
Mixing Tank
  • Total Volume: 7.86 Liter
  • Effective Capacity for Mixing: 5.0 Liter
  • Inner Diameter: 261 mm
  • Inside Depth: 147 mm
  • Material: SUS304
Mixing Blades
  • Two Stirring Blades made of SS304
  • Two Dispersing Blades made of SS304
  • One Spatula made of Teflon

Vacuum Pump

  • One double-step rotary vane vacuum pump is included

Cooling Unit
  • One water chiller with 9L tank - KJ3000 is included
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost

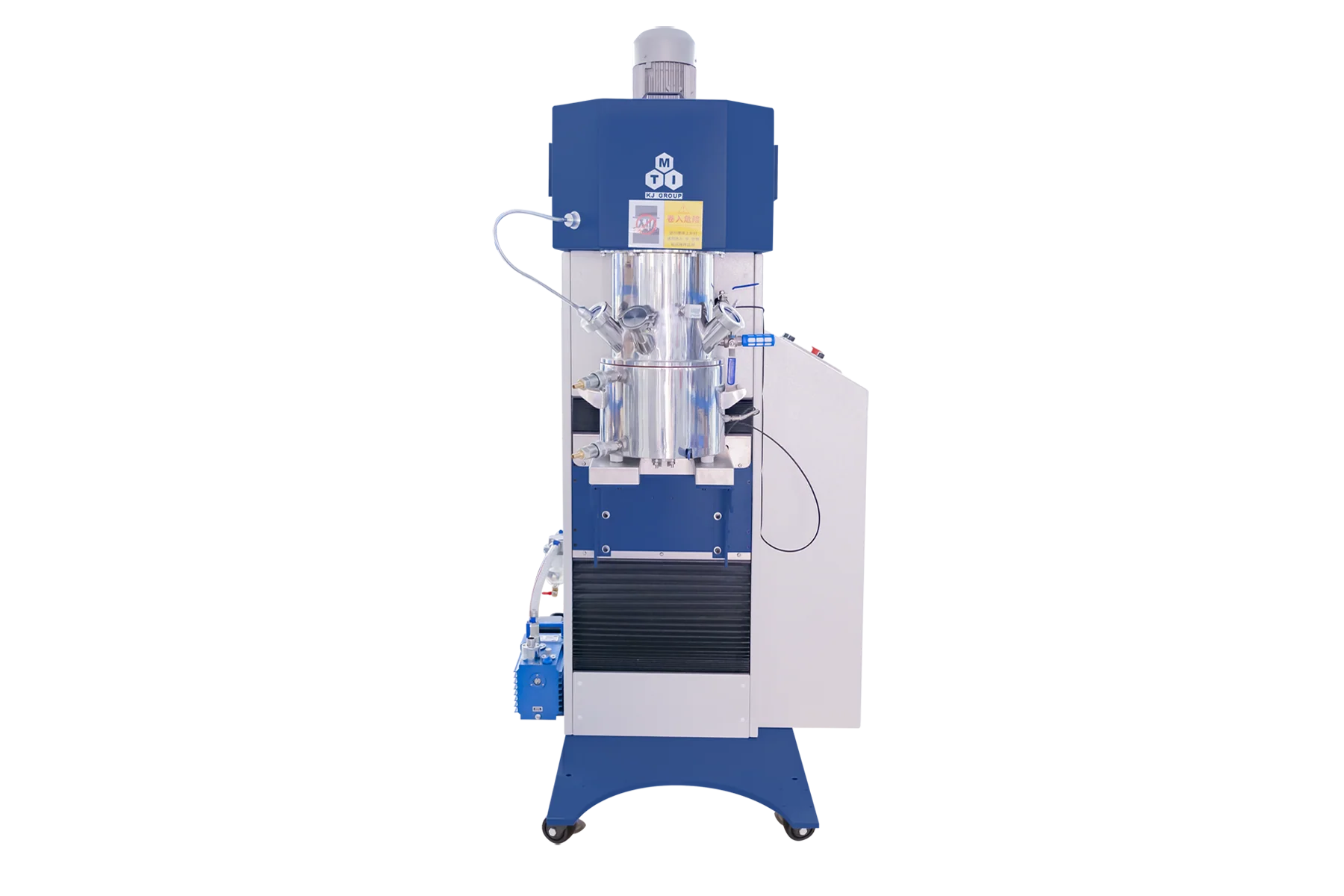

5 Liter Four-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-9-5L - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5 Liter Four-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-9-5L - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5 Liter Four-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-9-5L - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5 Liter Four-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-9-5L - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSK-SFM-9-5L is a Four-shaft (two dispersing, two stirring) planetary vacuum mixer with a 5-liter container and PLC Touch Panel Control. Such a vacuum mixer incorporates the unique dual-shaft stirring design to ensure a gas-bubble-free blending of complex materials under vacuum with extreme uniformity. Furthermore, an observation window on the mixing tank provides a better way to monitor the entire mixing process. MSK-SFM-9-5L is an excellent tool for preparing LiCoO3, LiFePO4, LiNCMO2, and ceramic slurries and provides much better results in dispersion and uniformity.

SPECIFICATIONS

Working Voltage
  • 208 - 240V AC, 50/60Hz, Single phase, 5.5 kW
Mixing Method/Blades
  • Rotation + Revolution
  • Dual Stirring Blades+ Dual Dispersing Blades + One Spatula
Speed
  • Stirring Seed: 2-112 rpm (suggested lower limit speed as 5 rpm)
  • Dispersing Speed: 0-6900 rpm (suggested lower limit speed as 100 rpm, please keep dispersing time less than 30 min in 6000-6900 rpm).
Slurry Viscosity
  •  Max. 100,000 mPa·s (cps)
Vacuum Rate
  • -0.098 Mpa (without slurry loading)
Mixing Tank
  • Total Volume: 7.86 Liter
  • Effective Capacity for Mixing: 5.0 Liter
  • Inner Diameter: 261 mm
  • Inside Depth: 147 mm
  • Material: SUS304
Mixing Blades
  • Two Stirring Blades made of SS304
  • Two Dispersing Blades made of SS304
  • One Spatula made of Teflon

Vacuum Pump

  • One double-step rotary vane vacuum pump is included

Cooling Unit
  • One water chiller with 9L tank - KJ3000 is included
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost
