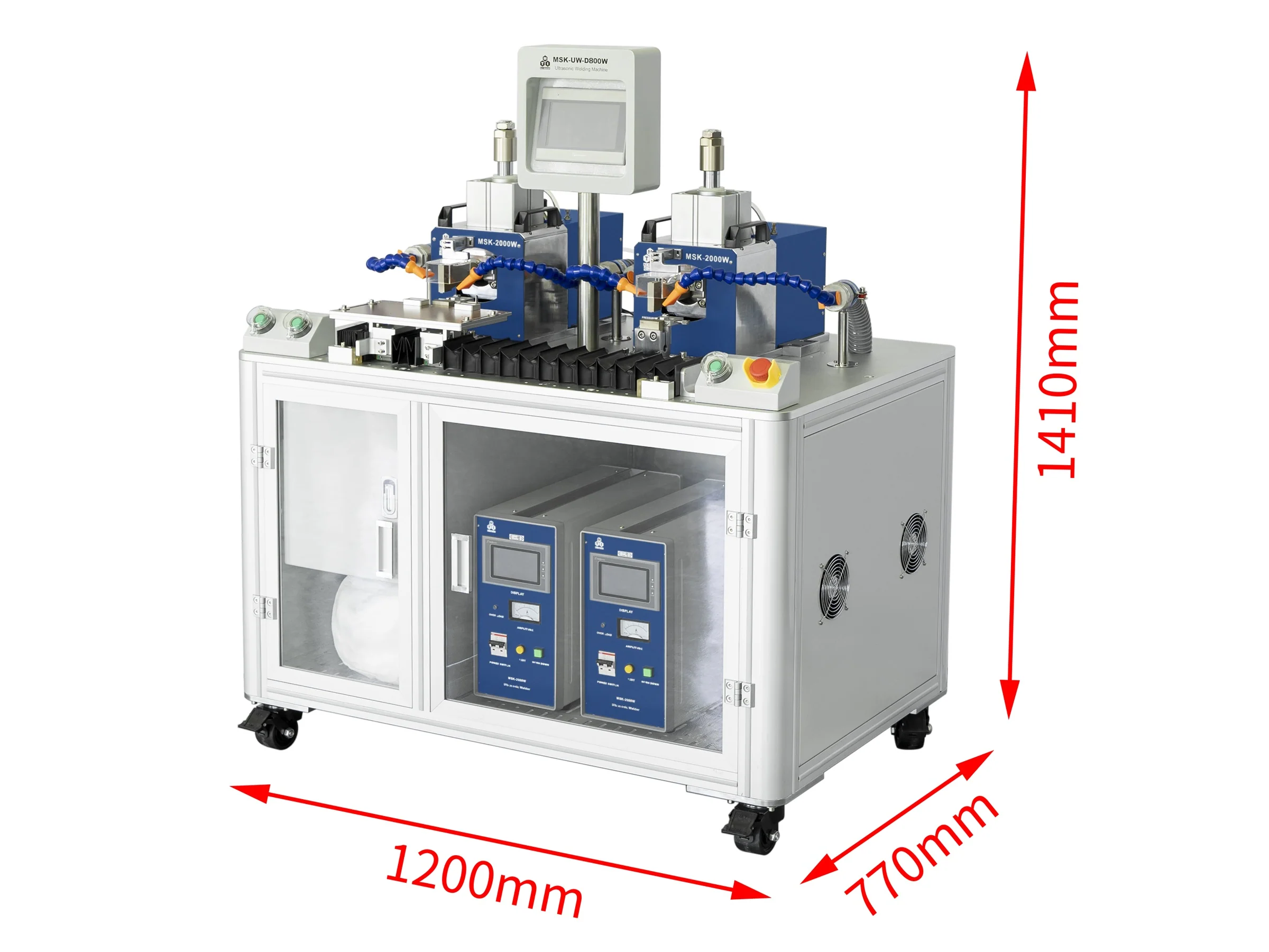

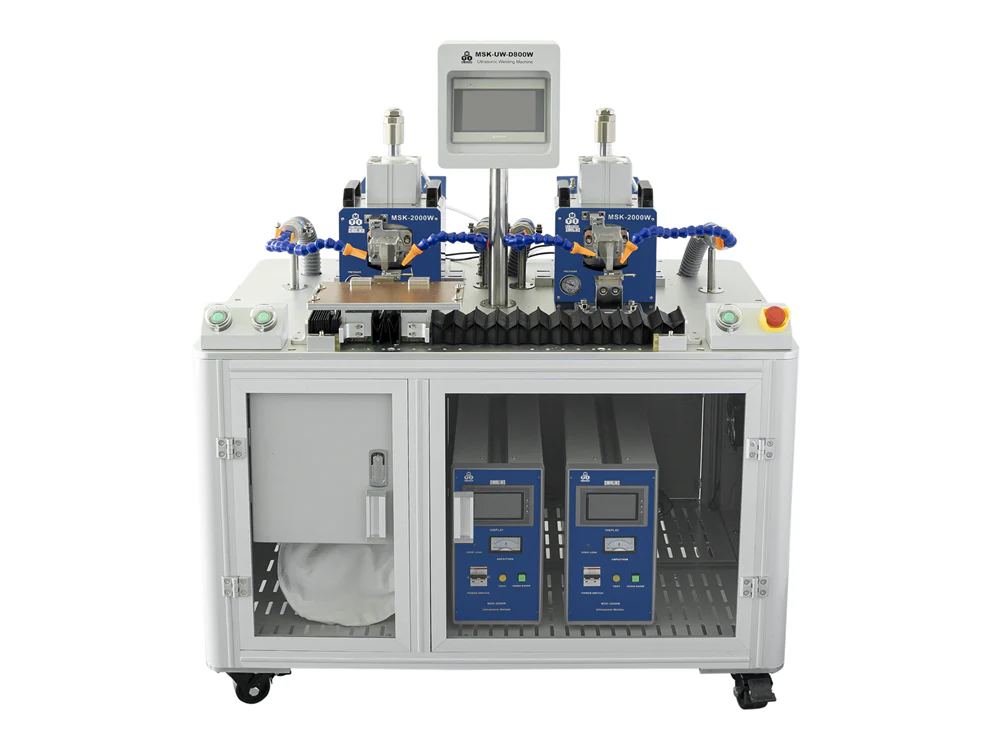

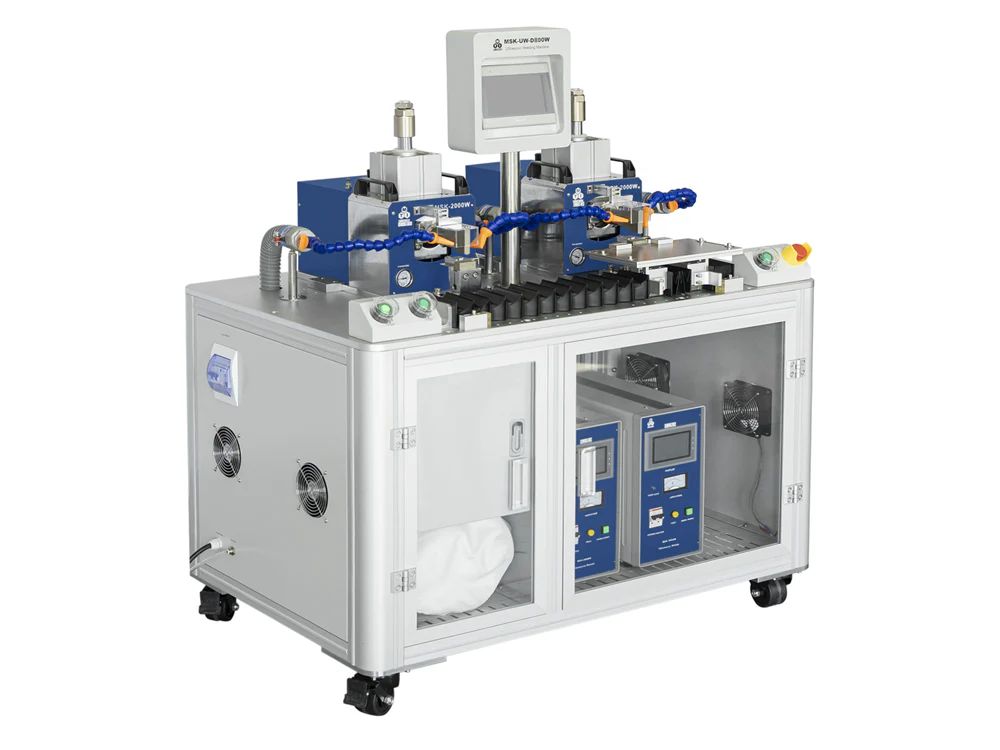

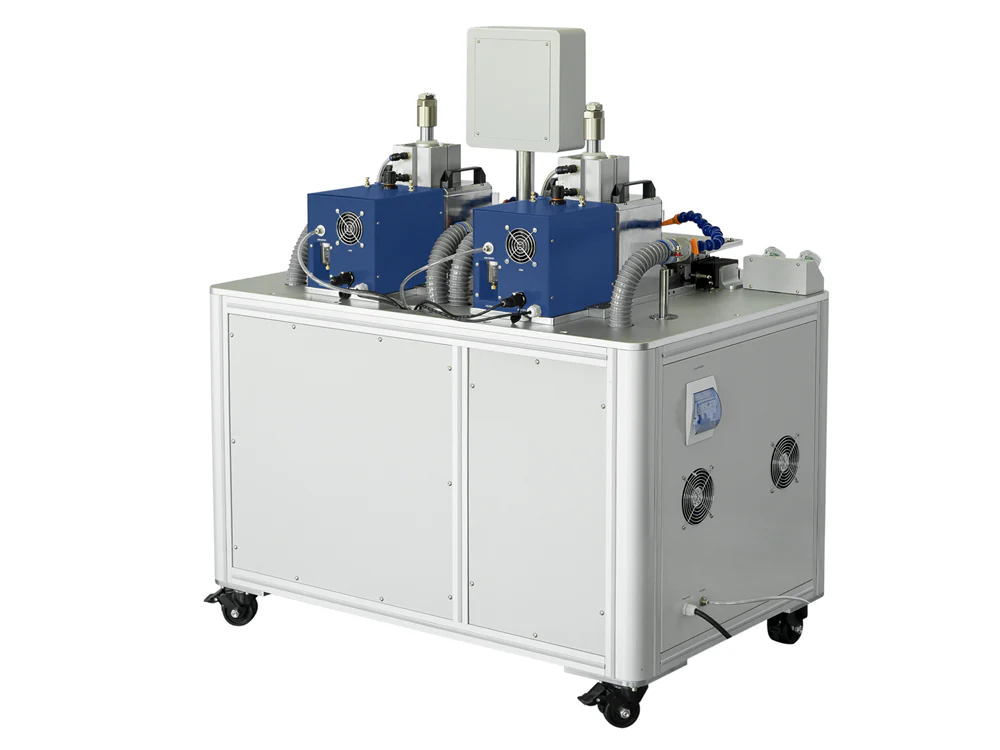

Dual-Station 800W Ultrasonic Metal Welder (Max. 15 layers) with Fixture on Sliding Rail, 40KHz - MSK-UW-D800W

• Dual-Stations for anode and cathode welding. The welding parameters can be individually set.
• A fixture for pouch cell with same side extrusion or two-side extrusion
•

• Four welding functions with cathode/anode tab pre-welding and welding
• Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...);
• Up to four recipes can be stored in the Al or Cu welding programs.

•  Input Voltage: AC220V±10%, single phase, 50/60Hz

• Input power: 1400W
• Output power from Ultrasonic: 800W (Max 15 layers), adjustable

• 4mm(L) x 4mm(W) (Two standard welding heads are included)

•  0.01-1 s, adjustable

• One set of welding head and welding base are included for welding both aluminum & copper current collectors from 1 to 15 layers
• One set of the welding head and base is pre-installed.

Tabs on the same side: L1: Max. 380 mm, L2: Min. 6 mm;
W1: Max. 210 mm, W2: Min. 6.5 mm, W3: Max. 206.5 mm

Tabs on the both sides: L1: Max. 380 mm, L2: Min. 6 mm,
W1: Max. 75 mm, W4: Max. 50 mm

• 40K Hz

• Air pressure at 85 psi is required for the operation (Air Compressor is not included. Please click here to order)
• Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator.

• CE Certified
• NRTL certification is available upon request at the extra cost

• Nickel and Aluminum Tabs can be welded onto different types of current collecting substrates (Aluminum or Copper) when making battery electrodes.
