The Story

MSK-151-L500 is a precision slurry feeding device with 500ml or 1000 mL stainless steel syringe for Li-ion battery electrode coating process.
It is compatible with the MTI machines MSK-AFA-200, MSK-AFA-MC200, and MSK-AFA-300-LD.

SPECIFICATIONS:

Products	MSK-151-L500	MSK-151-L1000
Features	High-precision control Easy-to-use control panel screen Adjustable movement speed Equipped with a 500 ml stainless steel slurry syringe
Power	Single Phase, NRTL listed AC 100 - 240 V In & DC 24 V Out power adapter is included 120W
Speed	Running Speed: 0.17 - 20 ml/s Plunger Speed: 0.05-5mm/s adjustable Accuracy: +/- 0.05 ml	Running Speed: 0.17 - 20 ml/s Accuracy: +/- 0.05 ml
Syringe pump	Material: 316 stainless steel Size: I.D. 65mm, L = 165 mm Capacity: 500ml Volume	Material: 316 stainless steel Capacity: 1L Volume
Touch-Screen Control Panel	Pump speed is adjustable Pre-setting injection volume Display the current injection volume Edit other parameters in the system Manual operation is also available
Options	To achieve a better coating by the slot die, the viscosity and dispersion of the slurry are significant. Please click the picture below to order a viscosity meter and dispersing machine to find the best parameter for your coating,
Applications notes	Such a slurry feeder can be used with MTI equipment such as MSK-AFA-MC200 and MSK-AFA-300-LD. to achieve higher production efficiency.

Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

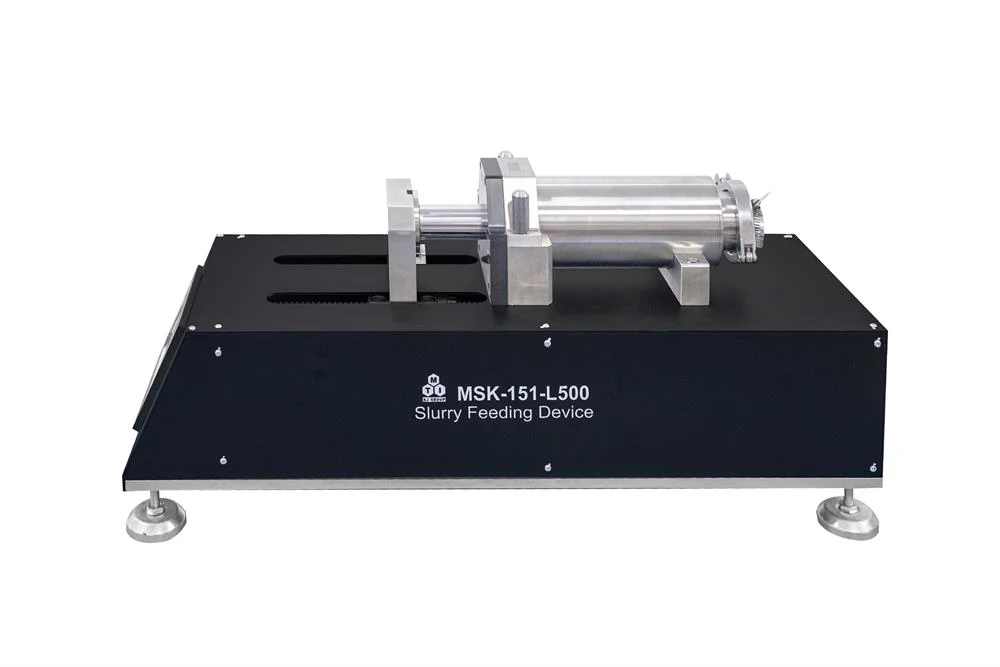

Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

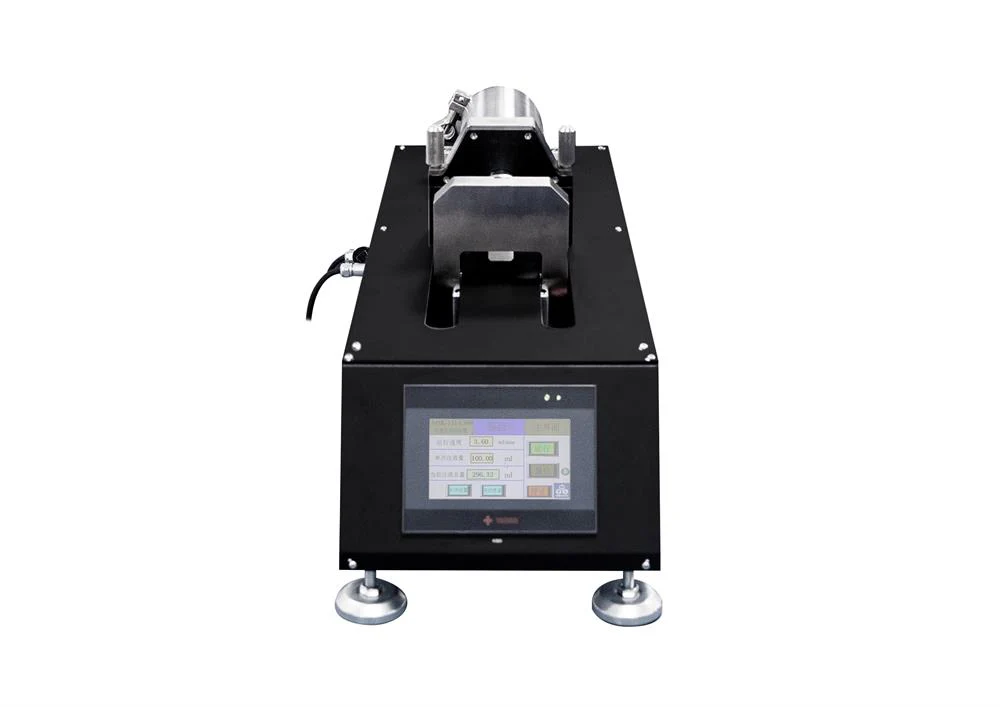

Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

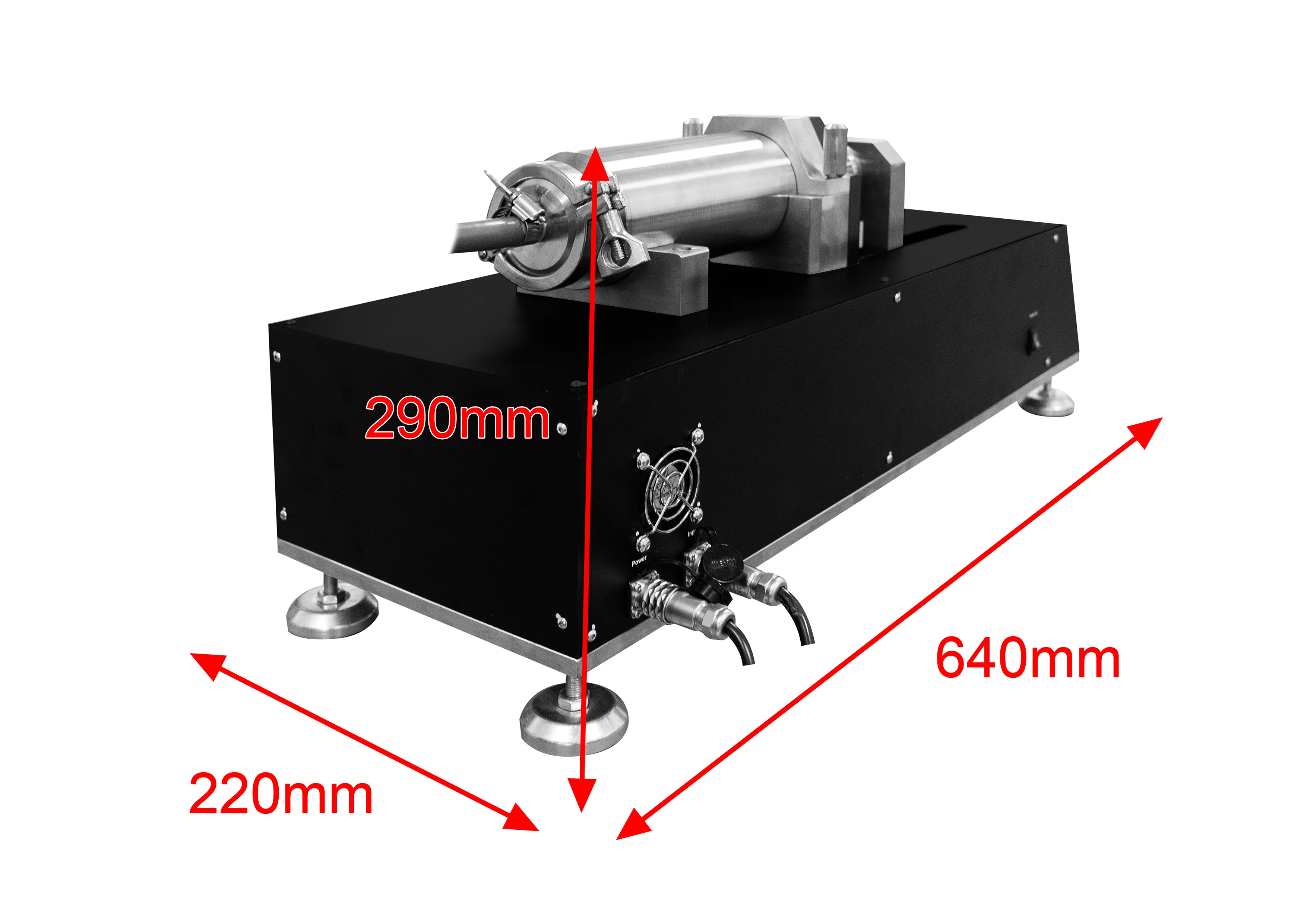

Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

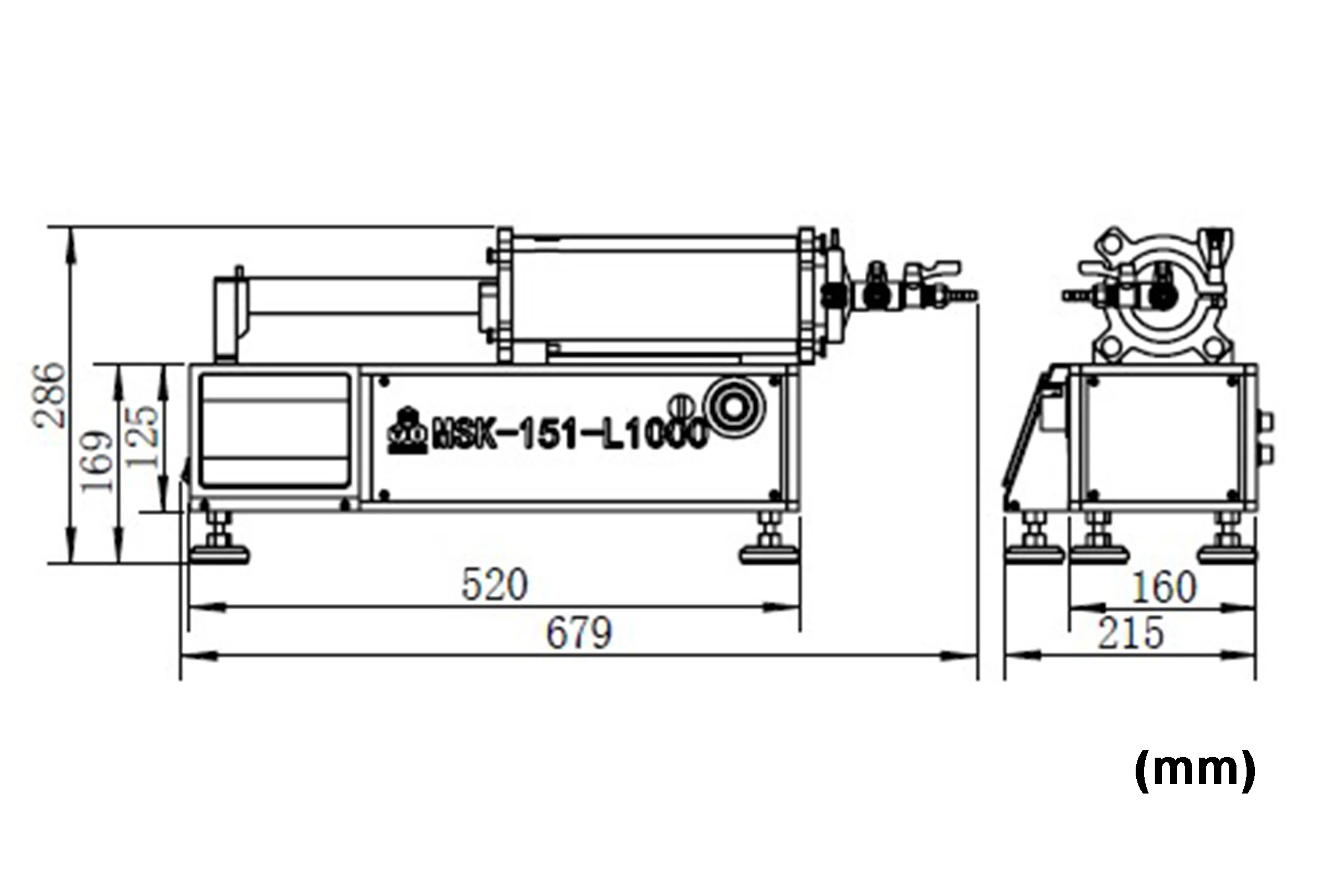

Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSK-151-L500 is a precision slurry feeding device with 500ml or 1000 mL stainless steel syringe for Li-ion battery electrode coating process.
It is compatible with the MTI machines MSK-AFA-200, MSK-AFA-MC200, and MSK-AFA-300-LD.

SPECIFICATIONS:

Products	MSK-151-L500	MSK-151-L1000
Features	High-precision control Easy-to-use control panel screen Adjustable movement speed Equipped with a 500 ml stainless steel slurry syringe
Power	Single Phase, NRTL listed AC 100 - 240 V In & DC 24 V Out power adapter is included 120W
Speed	Running Speed: 0.17 - 20 ml/s Plunger Speed: 0.05-5mm/s adjustable Accuracy: +/- 0.05 ml	Running Speed: 0.17 - 20 ml/s Accuracy: +/- 0.05 ml
Syringe pump	Material: 316 stainless steel Size: I.D. 65mm, L = 165 mm Capacity: 500ml Volume	Material: 316 stainless steel Capacity: 1L Volume
Touch-Screen Control Panel	Pump speed is adjustable Pre-setting injection volume Display the current injection volume Edit other parameters in the system Manual operation is also available
Options	To achieve a better coating by the slot die, the viscosity and dispersion of the slurry are significant. Please click the picture below to order a viscosity meter and dispersing machine to find the best parameter for your coating,
Applications notes	Such a slurry feeder can be used with MTI equipment such as MSK-AFA-MC200 and MSK-AFA-300-LD. to achieve higher production efficiency.
