Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV
HomeStore

Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV

Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV

Select Please select input voltage
From $11,998.00
Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV—
$11,998.00

The Story

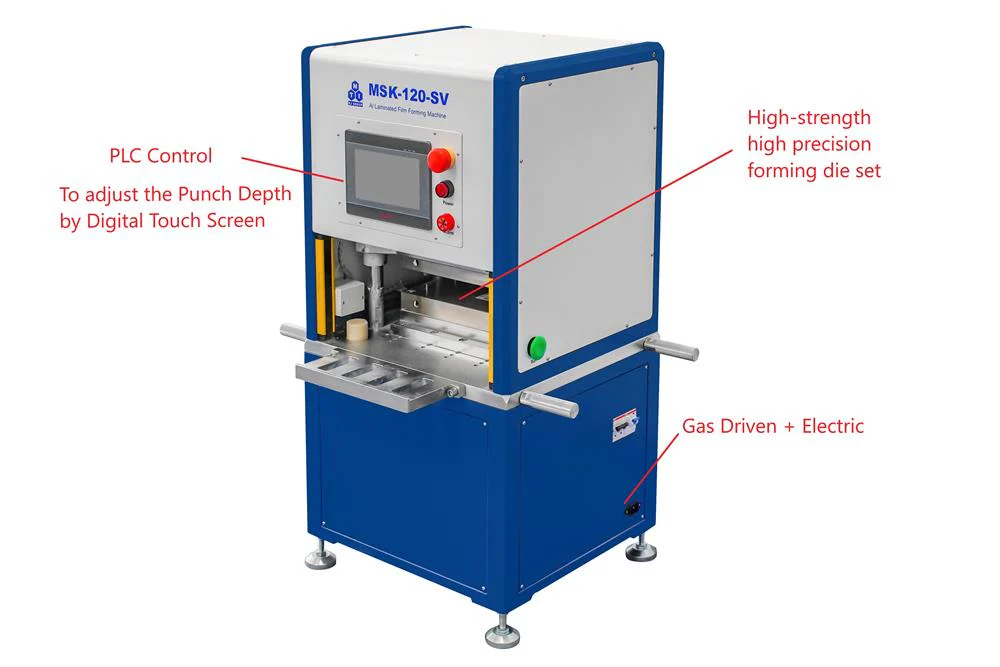

MSK-120-SV is a gas-driven and electrical Aluminum Laminated Films pouch case-forming machine with Automatic Depth Adjustment.

SPECIFICATIONS:
Features
  • Gas/Electrical driven.
  • The pouch cell forming depth, punching pressure, and speed are programmable
  • Case forming die set with high strength and precision.
  • Display for case forming time
  • PLC Control
Voltage and Power
  • AC 110V or AC 220V, 50/60 Hz (Please select from product options)
  • Maximum power: 1,000 W
Standard Die Size
  • Standard die size: 61mm (L) x 47mm (W) which perfectly fits the electrodes cut by MSK-180
  • Recommended pouch cell case size: 182 mm (L) at least x 137 mm (W), one aluminum laminated case after forming could be folded
Customized Die Size
  • One aluminum laminated case after forming could be folded, the maximum dimension: 70 mm (L) x 110 mm (W) with an airbag
  • One formed aluminum laminated case + one flat aluminum laminated case
    • With the airbag, the maximum dimension: is 120 mm (L) x 110 mm (W)
    • Without the airbag, the maximum dimension: is 120 mm (L) x 140 mm (W)
Air Pressure Requirement
  • 0.5 - 0.8 MPa Air or inert gas
  • Air Compressor is not included. Please click here to order.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
     pic1  pic2
Max. Cup Depth
  • Maximum 6.0 mm
  • Precision: ± 0.05 mm
Max. Punching Pressure
  • 1 metric ton
Al Laminated Film
  • The thickness of Aluminum Laminated Film: 0.10 mm - 0.20 mm is acceptable
  • Please click the picture below to order Aluminum Laminated Film.
Die Installation Warning
  • The tolerance of precision die is very little; Misalignment will result in die damage.
  • Following the operation manual when installing the die.
  • MTI is not responsible for the damage caused by desperation.
Small Footage Pouch Cell Machines High Throughput Electrode Cutting 3-in-1 Hot Sealer

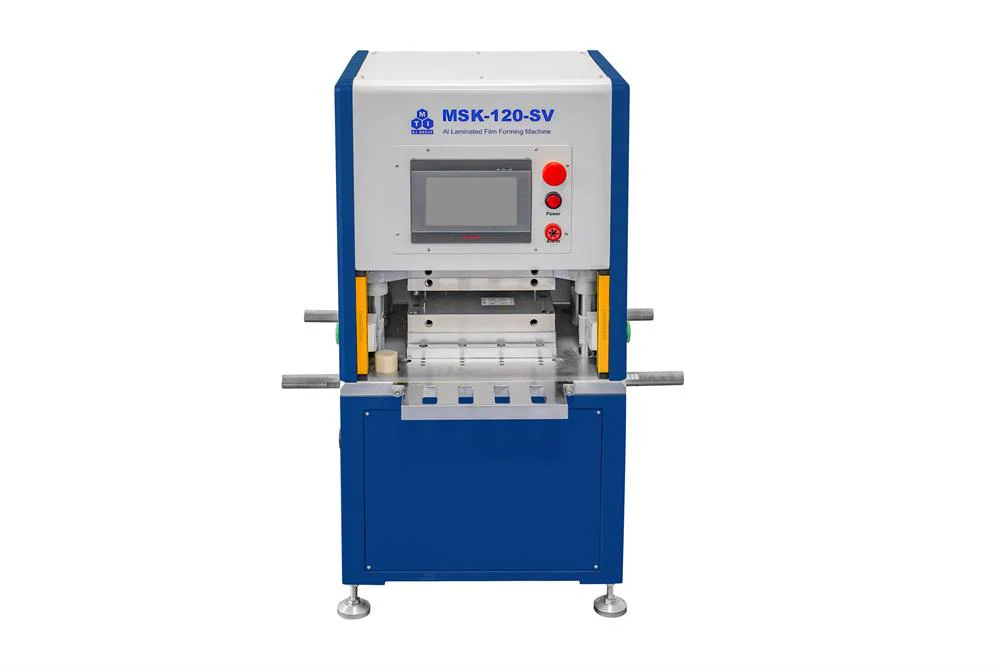

Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

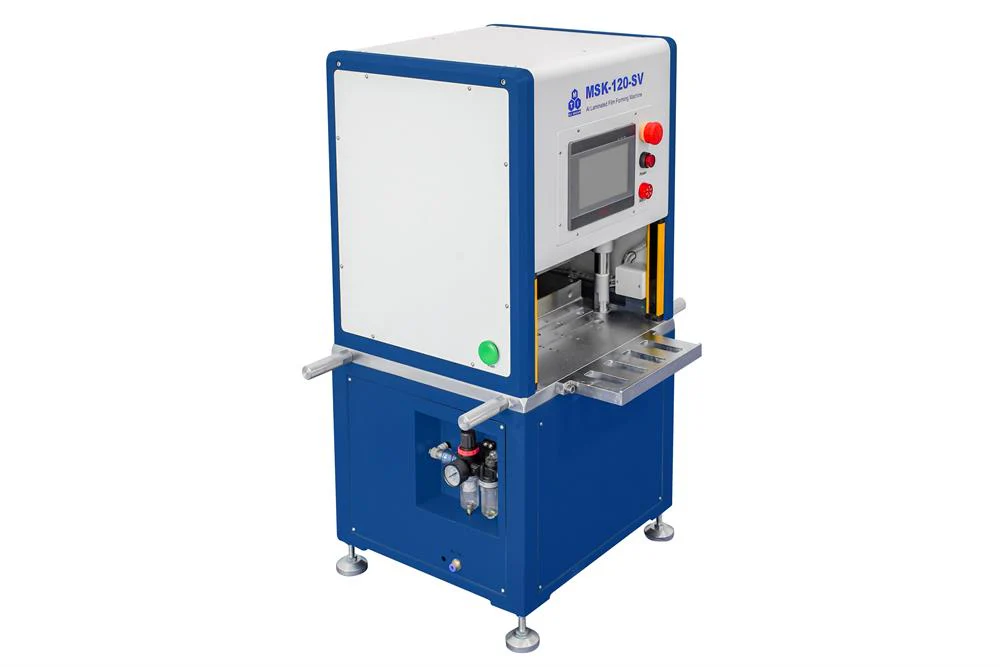

Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSK-120-SV is a gas-driven and electrical Aluminum Laminated Films pouch case-forming machine with Automatic Depth Adjustment.

SPECIFICATIONS:
Features
  • Gas/Electrical driven.
  • The pouch cell forming depth, punching pressure, and speed are programmable
  • Case forming die set with high strength and precision.
  • Display for case forming time
  • PLC Control
Voltage and Power
  • AC 110V or AC 220V, 50/60 Hz (Please select from product options)
  • Maximum power: 1,000 W
Standard Die Size
  • Standard die size: 61mm (L) x 47mm (W) which perfectly fits the electrodes cut by MSK-180
  • Recommended pouch cell case size: 182 mm (L) at least x 137 mm (W), one aluminum laminated case after forming could be folded
Customized Die Size
  • One aluminum laminated case after forming could be folded, the maximum dimension: 70 mm (L) x 110 mm (W) with an airbag
  • One formed aluminum laminated case + one flat aluminum laminated case
    • With the airbag, the maximum dimension: is 120 mm (L) x 110 mm (W)
    • Without the airbag, the maximum dimension: is 120 mm (L) x 140 mm (W)
Air Pressure Requirement
  • 0.5 - 0.8 MPa Air or inert gas
  • Air Compressor is not included. Please click here to order.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
     pic1  pic2
Max. Cup Depth
  • Maximum 6.0 mm
  • Precision: ± 0.05 mm
Max. Punching Pressure
  • 1 metric ton
Al Laminated Film
  • The thickness of Aluminum Laminated Film: 0.10 mm - 0.20 mm is acceptable
  • Please click the picture below to order Aluminum Laminated Film.
Die Installation Warning
  • The tolerance of precision die is very little; Misalignment will result in die damage.
  • Following the operation manual when installing the die.
  • MTI is not responsible for the damage caused by desperation.
