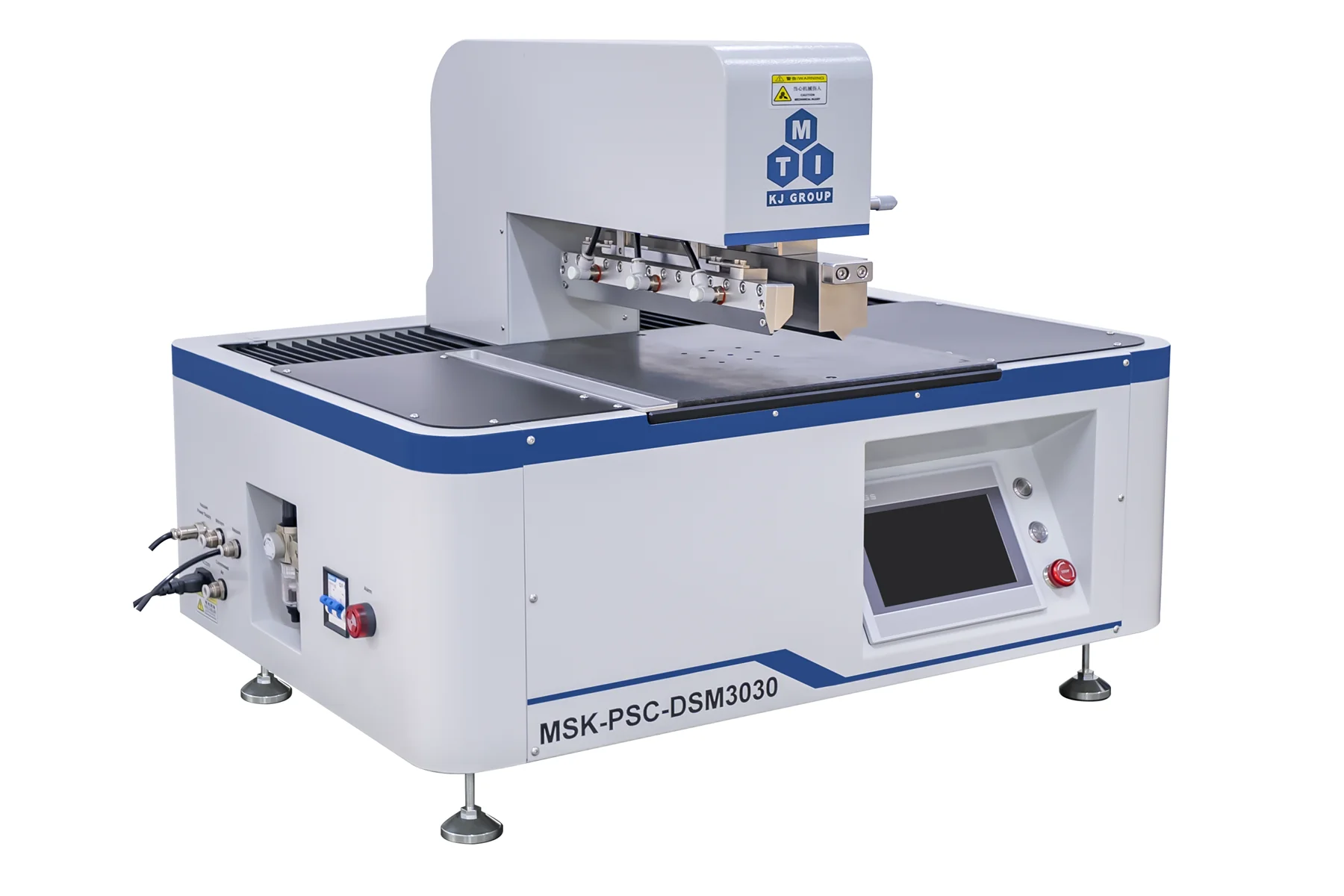

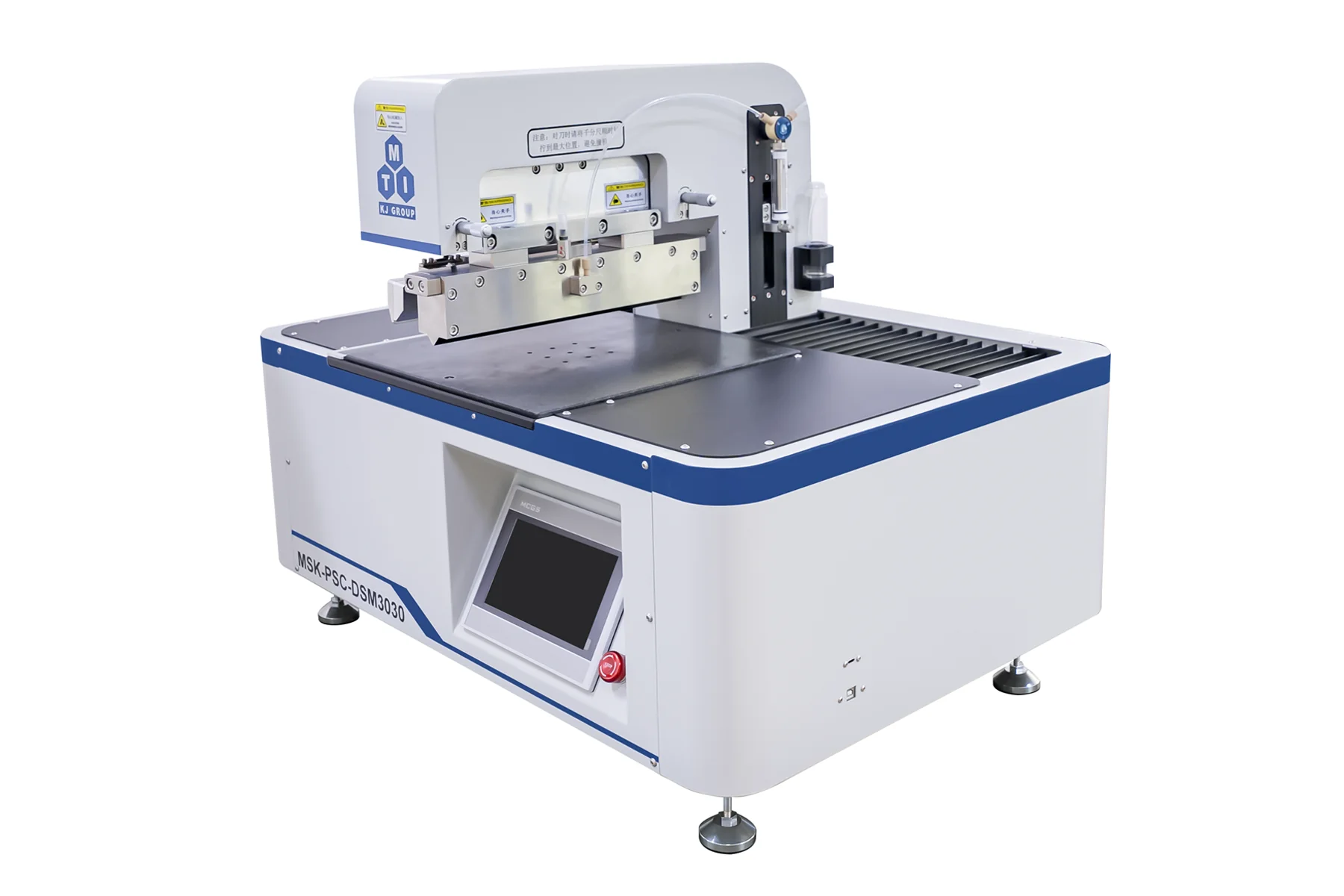

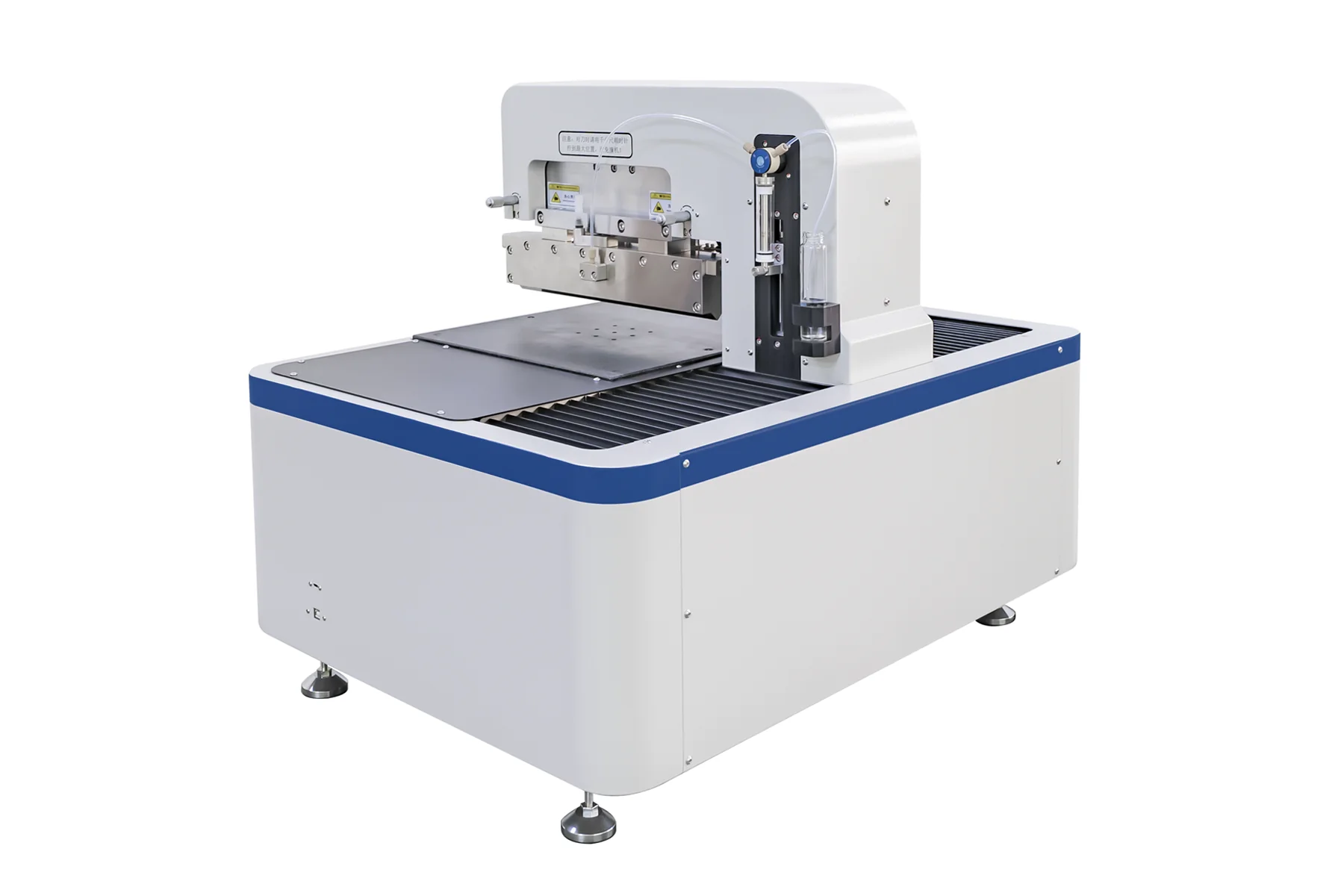

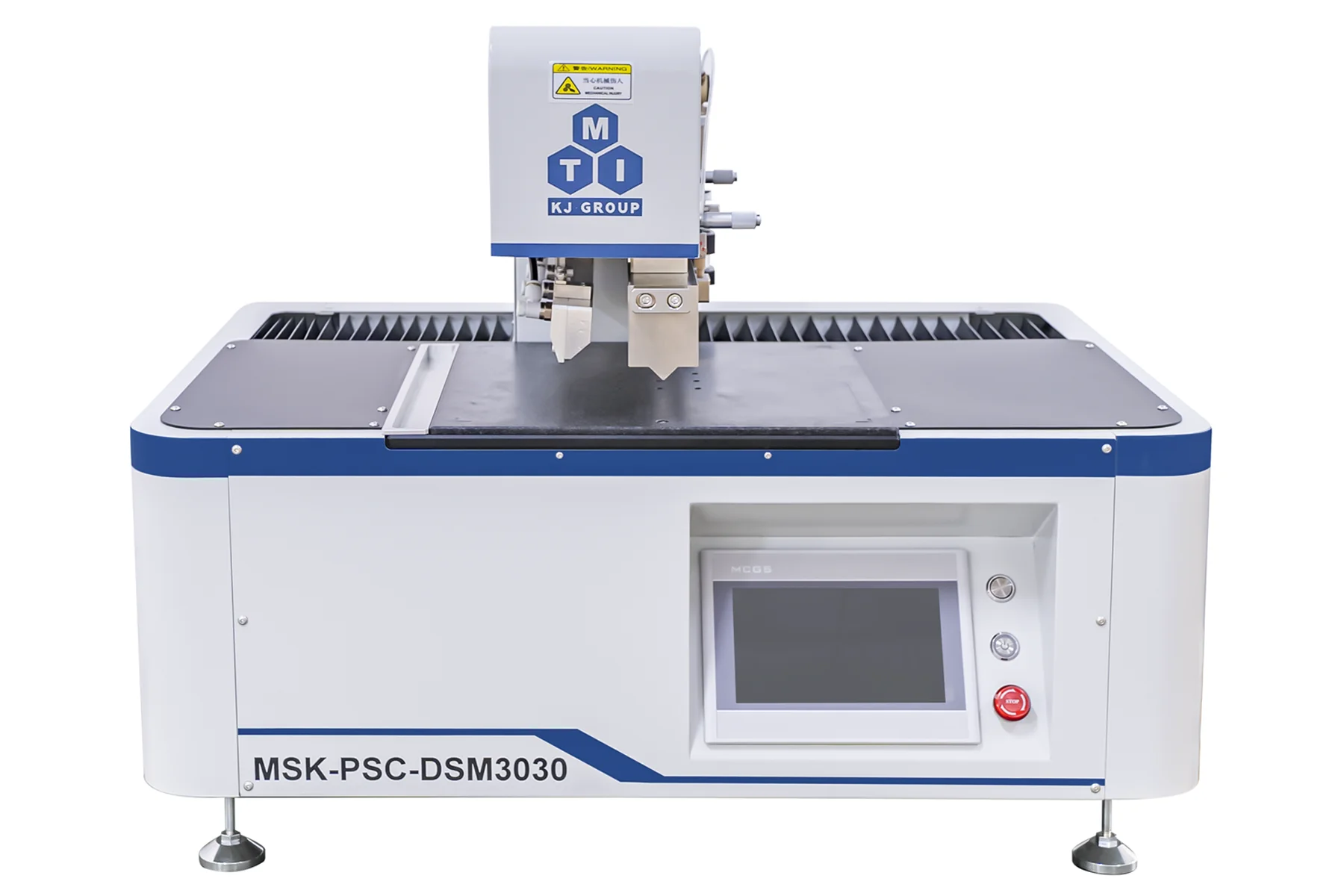

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030

• AC220V±10%, 50/60Hz, 800W (AC110V can be provided upon request)


• 300 mm width slot die head with 3 pcs shims with thickness 0.02, 0.04, 0.06 mm included (others thicknesses are available upon request)


• Different open-mouth width shims for various coating width are available upon request.
• Minimum coating thickness: 2 um (depending on slurry viscosity)

Substrate

• Rigid substrates, such ITO, FTO. Max. thickness is <3.2 mm
• Flexible substrate, such as ITO or FTO on PET

Travel Speed & Length

Coating

• Travel Speed: Max. 100 mm/s adjustable via touch screen control panel
• Maximum coating area: 300 mm W x 300 mm L
• 5 um-100 um (wet film, depends on material property)
• Slurry feeding speed: 0.1-500 ul/s
• Syringe volume: 10 mL (other volumes can be provided upon request)
• Slurry viscosity: 1-1000 cps

• 4" color touchscreen panel to set coating speed, heating temperature, and syringe pump speed

• CE certified
• NRTL or CSA certification is available upon request at extra cost

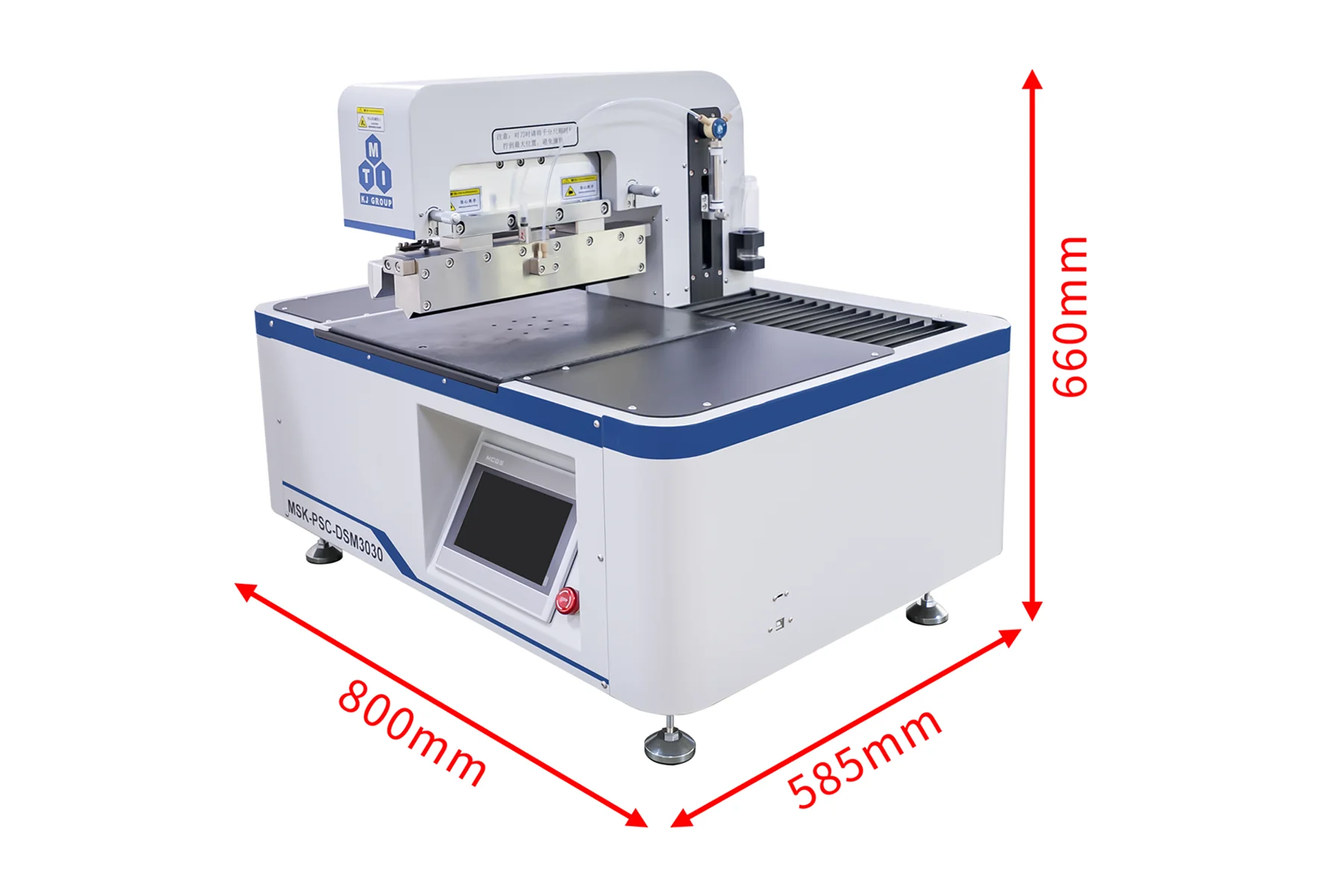

• W800mm×D585mm×H660mm

• 128 kg
